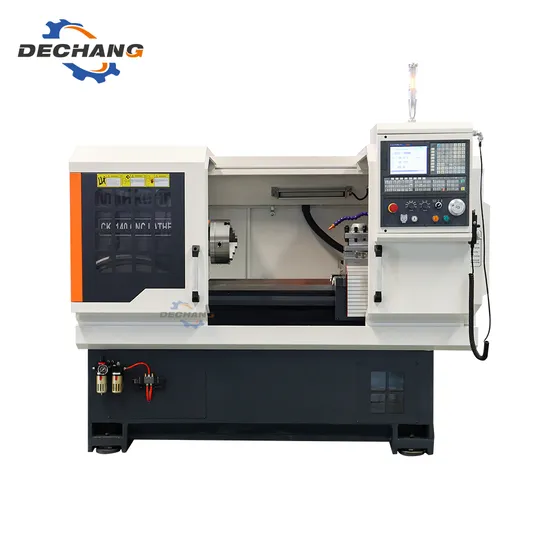

Ck6140V China Automatic Small Flat Bed CNC Lathe Machine for Sale

Product Description

CK6140V China Automatic Small Flat Bed CNC Lathe Machine for Sale
Features:
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration :manual chuck
Optional configuration:spring collet ,hydraulic chuck ,automatic feeding device ,gang type tools
Application:
Machine can automatically process the inside and outside cylinder surface ,cone surface ,circular arc surface ,end face ,such as processing ,and also can process the single and multile threads in metric ,inch and other standards .
Main technical Specifications:

SPECIFICATIONS	Units	CK6140V
Swing over bed	mm	400
Swing over cross slide	mm	240
Distance between centers	mm	550/750/1000
Spindle bore	mm	48(Opt.: 82)
Spindle bore taper	-	MT6
Spindle nose type	-	A2-6(Opt.: A2-8)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	150-2500(Opt.: 150-1800)
Turret/tool post	-	Electric 4 position
Tool size	mm	20 x 20
X axis travel	mm	280
Z axis travel	mm	750/1000
X axis rapid traverse	mm/min	8000
Z axis rapid traverse	mm/min	10000
Tailstock quill diameter	mm	Φ60
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	100
Main spindle motor	kw	5.5(Opt.: 7.5)
Coolant pump motor	kw	0.09
Weight for 550	kg	1700
Weight for 750	kg	1800
Weight for 1000	kg	2000
Dimension for 550	mm	2000x1300x1650
Dimension for 750	mm	2250x1300x1650
Dimension for 1000	mm	2500x1300x1650
