Box Profile Ridge Cap Forming Machine Building Machine for Construction Roof Tile Forming

Product Description

Box Profile Ridge Cap Forming Machine Building Machine for Construction Roof Tile Forming
It is one most popular type of roll forming machines. It makes different shape of color steel ridge cap sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 400mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters:

NO.	Item	Specification
1	Processing material	PPGI,GI
2	Processing thickness	0.2-0.8mm
3.	Coil width	500mm
4.	cover width	312mm
5.	Material of main frame	300H steel
6.	Diameter of Soild shaft	70mm, high grade 45# steel
7.	Roller	Quenched and tempered treatment, hard chrome coated 0.05-0.07mm
8.	Thickness of middle plate	16mm
9.	Forming station	16 station
10.	Transmission	By chain(1.0 inch) link bearing model 6210
11	Power of main motor	5.5kw with Cycloidal reducer
12	Power of pump station	4kw
13	Forming speed	about 8-10m/min
14	Hydraulic cutting	Controlled by PLC
15	PLC	DELTA(TAIWAN)/Mitsubishi
16	Material of razor blades	Cr 12, quenching 58-62ºC
17	Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).
18	Switch	CHNT
19	Transducer	SAJ

4. Equipment list :

No.	Product Name	QTY
1	5T Manual decoiler	1
2	Box Profile Ridge Cap Forming Machine Building Machine for Construction Roof Tile Forming (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

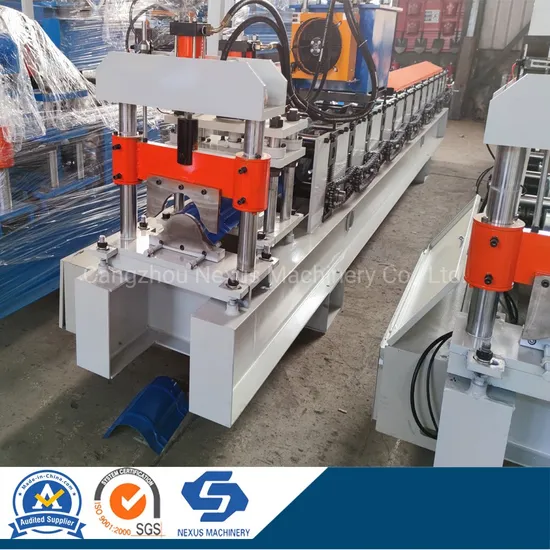

6. Photos of Box Profile Ridge Cap Forming Machine Building Machine for Construction Roof Tile Forming for Reference:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
Hot-Sale Products you Might Be Interesting:
Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
