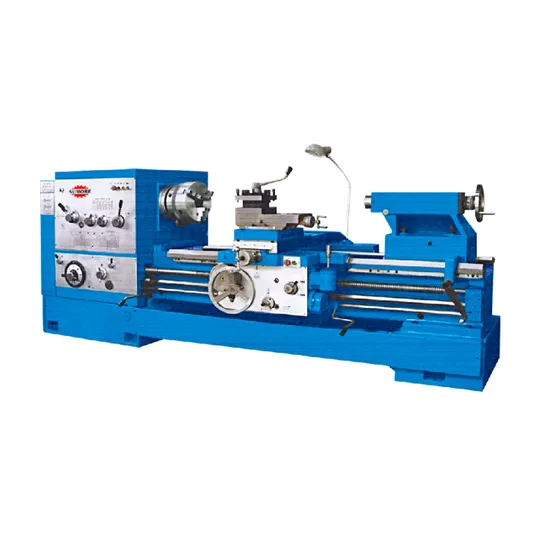

Made in Shanghai China Horizontal Sumore Torno Mecanico Lathe Machine

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)
China Best Quality Heavy Duty Metal Lathe Machine Price SP2145
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
New condition Japanese quality conventional mechanical lathe for manicure 1m - 12m long 105/130mm High Precision 1-12m Big Horizontal Engine Lathe Machine Heavy Duty/ Swing 630-800-1000-1200mm CW CWA CWC CWE CWZ CZ SKQ SK 1 - 12 Meter Heavy Duty Lathe Machine SP2145 Mechanical Workshop Equipment
CE approval conventional torno parallel metal lathe CW61110
Quick Detail: Main specification of horizontal lathe machine: Processing material: aluminum, copper, metal etc. Workpiece length: 1000/1500/2000/3000/4000......12000mm Swing over bed: 630/800/1000/1200mm Swing over gap: 830/1000/1200/1400m Spindle bore: 105/130mm Description: SP2145 engine lathe machine has big hole 105/130mm spindle bore, the work piece length could be up to 12000mm, It is universal lathe machine with strong function. This manual lathe machine has 630mm or 800mm or 1000mm or 1200mm large swing over bed. The main features/advantages are as below: 1. This lathe machine can use to process castings, steel and medium-sized and large-sized parts of nonferrous. 2. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. 3. This serial lathe machine are universal lathe,suitable for high-speed steel and carbide cutting tools for different materials steel shaft parts, cylindrical parts and disk-shaped, for turning cylindrical, face, grooving, cutting, boring, boring the cone, threading and other processes. 4. They are also suitable for turning external cylindrical, inner hole and end face. 5. Triple support of this series lathe machine ensures spindle rigidity and supporting capacity. 6. This series lathe machine have the large speed range, and the motion is smooth and the low temperature-rising. 7. This series lathe machine has the nice and dignified appearance.
Product Parameters

Model	SP2145-III	SP2145-IV
Swing over Bed	1,000 mm	1,200 mm
Swing over Cross Slide	685 mm	800 mm
Swing over Gap	1,200 mm	1,400 mm
Valid length of gap	230mm
Max workpiece length	2750mm
Width of Bed	550 mm
Spindle Bore	105 mm
Spindle Taper	1:20
Spindle Nose	D-11
Range of Spindle Speeds	18 steps 14-750 rpm
Metric threads range	54 kinds 1-240mm
Inch threads rangs	36 kinds 28-1 inch
Moudle threads range	27 kinds 0.5-60 DP
Diametral threads range	27 kinds 30-1 t.p.i.
Range of Longitudinal Feeds	72 kinds 0.048-24.300 mm/rev
Range of Traverse Feeds	72 kinds 0.024-12.150 mm/rev
Rapid Longitudinal Feeds	4,000 mm/min
Rapid Traverse Feeds	2,000 mm/min
Leadscrew diameter/pitch	T48mm/12mm
Tailstock Quill Diameter	120 mm
Tailstock Quill Taper	MT6
Tailstock Quill Travel	240 mm
Tool Post	32x32 mm
Compound Travel	200 mm
Cross Slide Travel	500 mm
Main Motor Power	11kw
Coolant Pump Power	90w
Rapid Feeding Motor Power	1.1kw
Overall Dimensions (LxWxH)	4000*1600*2000mm	4500*1700*2000mm
Net/Gross Weight	5/5.5 T	5.2/5.7 T
