Basic Info.
Installation
Rack-Mounted
Transmission Rate
100 Mbps
4G LTE FDD
900/1800/2100/2600 MHz
Keywords
High Speed 4G USB Dongle
Product Name
Unlocked E398u-1
External Antenna
Two CRC-9 Connectors
Network Technology
4G / 3G / 2g
Transport Package
Standard Packing
Packaging & Delivery
Package Size
15.00cm * 10.00cm * 8.00cm
Package Gross Weight
1.000kg
Product Description

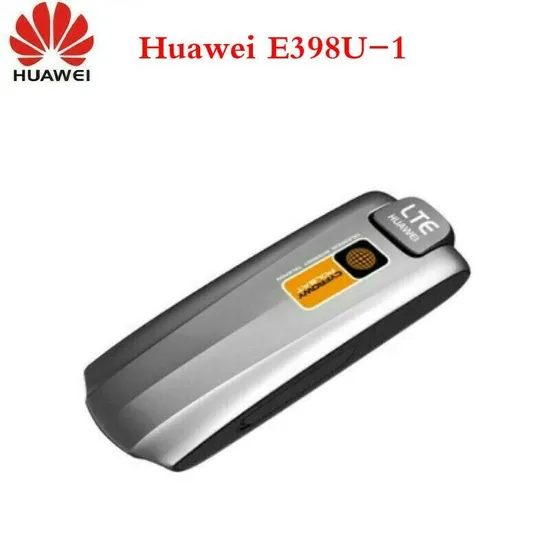

Product Usage Huawei E398 is a newest Triple-Mode LTE Modem from Huawei devices. it supply fully unlocked and ready to use with all global serivces. Support download speeds of up to 100Mbps gives you lightning fast Internet connection in LTE network, and you do not have to annoy you over slow networks while on the go. the Mobile Broadband E398/E398u-15 is a powerful multi-frequency modem.
The USB dongle Huawei E398 (also known as E398u-1 or Telekom 4G Speedstick LTE) is very similar to Z-TE MF820 dognle and Sierra Wireless 313U both supports 4G LTE but with different bands ,also both it is backward compatible and can also be used on DC-HSPA+ 3G (2100MHz) and 2G where there is no 3G/4G coverage. You will in other words, always the fastest network, wherever you are. E398 are produced in environmentally friendly, recyclable plastic and is very easy to use you just need to connect it to a PC, then install the software automatically. The modem supports Windows 7, Vista and XP, plus Mac OS X 10.5.8 and later versions. Product Description E398 frequence HUAWEI E398u-1
* 4G LTE FDD 900/1800/2100/2600 Mhz
* 3G UMTS 900/2100 Mhz
* 2G GSM/GPRS 850/900/1800/1900Mhz
HUAWEI E398u-11:
* 4G LTE FDD 1800/2100/2600 Mhz
* 3G UMTS 900/2100 Mhz
* 2G GSM/GPRS 850/900/1800/1900Mhz
HUAWEI E398u-15:
* 4G LTE FDD 800/1800/2600 Mhz
* 3G UMTS 900/2100 Mhz
* 2G GSM/GPRS 850/900/1800/1900Mhz
HUAWEI E398u-18:
* 4G LTE FDD 900/2100/2600 Mhz
* 3G UMTS 900/2100 Mhz
* 2G GSM/GPRS 850/900/1800/1900Mhz
HUAWEI E398s-81:
* 4G LTE TDD 2300/2600MHz, FDD 2600MHz chipset: Qualcomm's MDM9200TM
Model: huawei E398
Unlocked
Yes. Ready to use with global services
Network Band
GSM (2G), UMTS (3G) and LTE (proto-4G)
Data Speed: Download speeds of 100 Mb/s
Port: USB 2.0
Memory: Micro SD card slot
Supported Systems
Suppot Win 7, Windows 2000/XP/Vista, Ma and Linux Operating Systems
Function
Support LTE: CAT3, DL 100Mbps / U L 50Mbps @ 20Mhz Bandwidth 2*2 MIMO
Plug & Play
Support work mode GPRS, EDGE, HSDPA, HSPA, HSPA + with MIMO and dual carrier, as well as LTE MicroSD card slot up to 32GB
* HSUPA, HSPA + and dual-carrier HSPA + and Receive Diversity
* GSM with EDGE support
Display: LED Indicator
Antenna: Intergrated and 2 X External antenna interface(buy E398 4G Antenna ) Dimensions
About 90mm x 28mm x 15 mm
Package Contents
E398 modem
Package box
4g antenna
Warranty
12 Months Manufacturer Warranty Memory Company Introduction
