High Quality Metalworking Gap Bed Lathe (CA6150)

High Quality Metalworking Gap Bed Lathe (CA6150)

US$6,000.00-18,000.00 1 station (MOQ)

Basic Info.

Model NO.
CA6150
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Tool Station
Power Source
Joint Drive
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001, SGS
Condition
New
Max.Swing Over Bed
500mm
Max. Swing Over Carriage
300mm
Max. Swing in Gap
720mm
Effective Gap Length
210mm
Max. Length of Work Piece
750/1000/1500/2000/2200/3000/4000mm
Width of Bed
400mm
Section of Turning Tool
25X25mm
Spindle Speeds
10-1400rpm/16-1400rpm
Hole Through Spindle
52/82/105mm
Transport Package
Plywood Cases
Specification
2550× 1140× 1750mm
Trademark
Schuler
Origin
Shandong China
HS Code
8458190000
Production Capacity
180 Piece/Year

Packaging & Delivery

Package Size
370.00cm * 114.00cm * 175.00cm
Package Gross Weight
2170.000kg

Product Description

High Quality Metalworking Gap Bed Lathe Machine for Sale (CA6150)

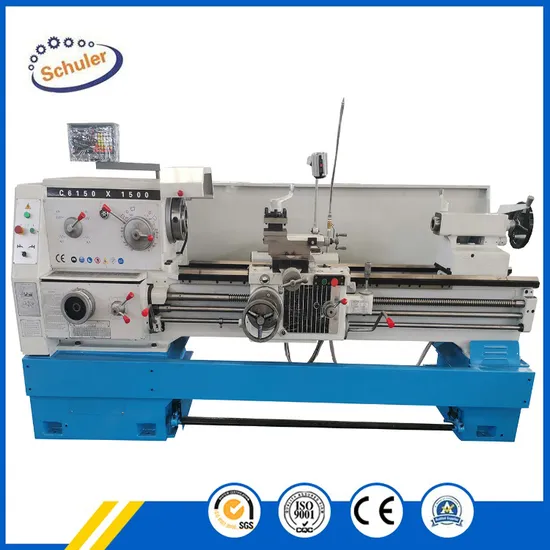

Product Picture:
Product Features:
1. Machine headstock and bed. Tail seat. Manually scrape the tray between the joints. The machine has been rigorously tested to ensure the accuracy and stability of the machine.
2. The machine tool uses high-strength cast iron and adds special materials such as copper and chrome. The bed rail width is 400mm and the bed rail quenching depth is 4mm, which effectively improves the wear resistance and stability of the machine tool.
3, head bed box lubrication using cycloidal pump for cyclic forced lubrication. It protects the headboard from the clean and heat-dissipating properties of the hot southern weather, effectively extending the life of bearings and gears.
4. The machine tool spindle adopts Wafangdian bearing, the spindle through hole is φ52mm, and the machine tool gear adopts precision grinding, which effectively improves the gear hardness and reduces the machine noise.
5. The machine tool adopts domestic brand screws, and the silk mother adopts high-quality bronze alloy to ensure wear resistance and precise maintenance.
6. The machine tool adopts four-station high-strength tool holder. The tool holder size is 25x25mm.
Standard accessories:
1.3-jaw chuck
2.Center¢re sleeve
3.Wrenches
4.Oil gun
5.Operation manual
Optional accessories: 1.Steady rest
2.Follower rest
3.4-jaw chuck
4.Face plate
5.Thread chasing dial
6.Longitudinal automatic trip
7.Live center
8.Quick change toolpost
9.Taper copy ruler
10.4-position longitudinal trip
Lathe Machine Technical Parameters:
Specifications CA6150/CA6250
Max.Swing over bed 500mm
Max.Swing over carriage 300mm
Max.Swing in gap 720mm
Effective gap length 210mm
Max.Length of work piece 750mm-40000mm
Width of bed 400mm
Section of turning tool 25×25mm
Spindle speeds 10-1400rpm/16-1400rpm(24 steps)
Hole through spindle 52mm,(80mm),[105mm]
Spindle taper Mohs6(MT6)(Ф90 1∶20)[Ф113 1∶20]
Number of feeds 64Species(kinds)(for each)
Range of metric threads(kinds) (1-192mm)44Species(44 kinds)
Range of inch threads(kinds) (2-24tpi)21Species(21 kinds)
Range of module threads(kinds) 0.25-48(Modulus39Species)(Module 39 kinds)
Range of pitch threads(kinds) 1-96DP(37Species)(37kinds)
Max.Tail stock spindle travel 150mm
Tail stock spindle diameter 75mm
Taper of tail stock spindle center hole Mohs5(MT5)
Main motor 7.5KW(10HP)
Overall dimensions for750mm 2550×1140×1750mm
Overall dimensions for1000mm 2700×1140×1750mm
Overall dimensions for1500mm 3200×1140×1750mm
Overall dimensions for2000mm 3700×1140×1750mm
Overall dimensions for2200mm 4030×1140×1750mm
Overall dimensions for3000mm 4850×1140×1750mm
Overall dimensions for4000mm 5800×1140×1750mm
Weight for 750mm 2170kg
Weight for 1000mm 2260kg
Weight for 1500mm 2420kg
Weight for 2000mm 2720kg
Weight for 2200mm 2940kg
Weight for 3000mm 3450kg
Weight for 4000mm 3750kg

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Lathe Macine Details Picture:
Lathe Machine In the Workshop:
Lathe Machine Package delivery:
The Package of Metal Lathe CA6150 CA6250 Gap Bed Lathe Machine for sale is export standard plywood case with iron plate below ,very strong and durable .
The Metal Lathe CA6150 CA6250 Gap Bed Lathe Machine for sale will be shipped to customers by land freight or sea freight .
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Shandong Schuler CNC Machinery Co,Ltd.
Add: Tengzhou City ,Shandong Province ,China
Edwin
