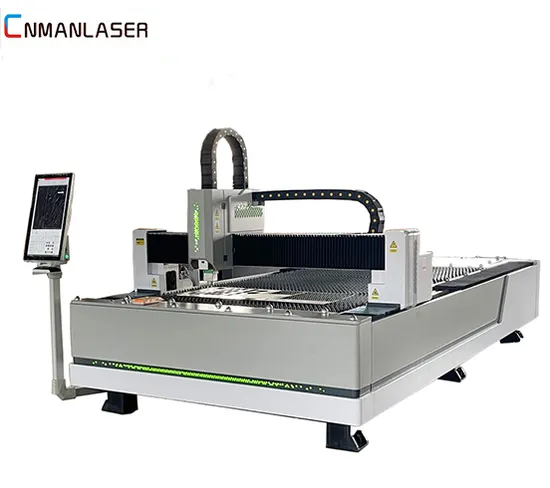

1000W Fiber Laser Cutting Machine for Metal Sheet Carbon Steel Stainless Steel Aluminium Copper Brass Cutting

Product Description

1000W Fiber Laser Cutting Machine for Metal Sheet Carbon Steel Stainless Steel Aluminium Copper Brass Cutting
Product Description>>>

fiber laser cutting machine which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.
Technical Parameter>>>

Laser Type	Fiber Laser
Laser Technology	Germany Technology
Max. Cutting Thickness (mm)	1-5mm carbon steel
Max. Cutting Speed	5-20 Meters / Min (up to Materials)
Max. Location Speed	60m/min
Laser Wavelength	1070nm
Minimum Line Width	≤0.1mm
Location Precision	≤±0.05mm
Re-Location Precision	±0.02mm
Max. Moving Speed	100m/min
Supporting Format	PLT, DXF, BMP, AI
Power Demand	380V/50Hz
Cooling Way	Water Cooling
Transmission Method	Ball Screw Transmission
Table-Driven System	Japanese Imported Panasonic / Yaskawa Servo Motor & Driving System
Focus Method	Following and Automatic Adjust Focus
Control Method	Offline Movement Control
