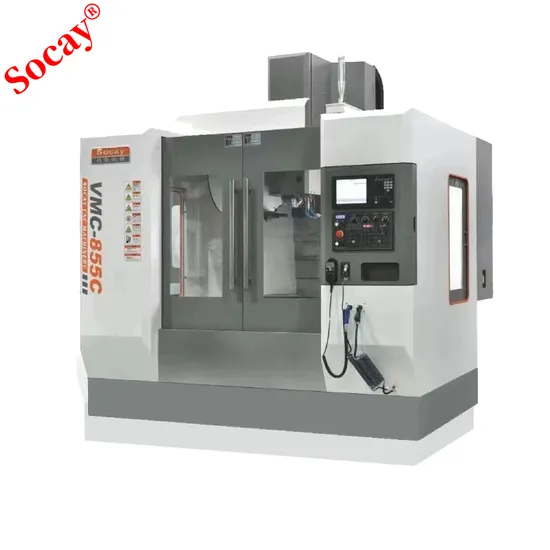

Customize CNC Vertical Machine Center Vmc-850 CNC Machine Milling China

Product Description

Socay Precision Machinery
An Example VMC1050 compared to VMC855
1. The X-axis travel is increased by 200mm, which increases the processing range
2. Spindle speed increased from 8000 to 10000, improving processing quality
3. Bearings are upgraded from NSK made in China to NSK made in Japan to ensure product quality
4. The number of Z-axis sliders has been increased from 2 to 3,which improves the rigidity of the Z-axis
5. The Z-axis guide rail is changed from 35mm to 45mm, which improves the overall rigidity of the machine
6. The grounding bolts of the base are increased from 3 on one side and 6 on both sides to 4 on one side and 8 on both sides, which improves the stability of the machine tool
7. The compressed air system is also fully upgraded to distribute air sources more efficiently
8. The oil pump controller is upgraded to Taiwan SUNSHINE brand professional oil pump controller control. 4 axis 5 axis metal cnc milling machine for metal
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

SPECIFICATIONS	Units	VMC850	VMC860	VMC1050
Table size	mm	1000*500	1000*550	1000*500
X axis travel	mm	800	850	1000
Y axis travel	mm	500	600	500
Z axis travel	mm	500	600	500
Max. worktable load	kg	500	600	500
T slot(number-width*pitch)	-	5-18*90	5-18*90	5-18*90
Max. spindle speed	rpm	8000	8000	8000
Spindle taper	mm	BT40	BT40	BT40
Main motor power	kw	7.5	7.5	7.5
X/Y/Z rapid traverse speed	m/min	24/24/20	24/24/20	24/24/20
Cutting feed speed	mm/min	1-8000	1-8000	1-8000
Guide rail type	-	Linear rail	Linear rail	Linear rail
Distance from spindle axis to column surface	mm	525	590	525
Distance between spindle nose and table surface	mm	130-630	130-660	130-630
Positioning accuracy	mm	0.0075	0.0075	0.0075
Repeat positioning accuracy	mm	0.005	0.005	0.005
Tool magazine	-	Arm 24	Arm 24	Arm 24
Max. tool diameter	mm	78/120	78/120	78/120
Max. tool weight	kg	8	8	8
Machine weight	kg	5000	5600	5200
Overall dimension(L*W*H)	mm	2600*2300*2800	2900*2400*2800	3200*2400*2800

MACHINE CONSTRUCT High strength high quality HT300 cast iron, TAIWAN PRECISION SPINDLE 1. Taiwan spindle BT40 8000rpm with ring cooling function 2. Passed dynamic balance ISO rating test SCREW AND COUPLING 1 TAIWAN famous brand lead screw, 2. lead screw bearing using SKF or NACHI bearing, 3. coupling YC directly connected TOOL UNCLAMP CYLINDER Taiwan spindle Tool unclamp cylinder STRONG CHIP PUNCHINIG Standard with strong chip punching function . PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components. AIR CONDITIONER Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better . TESTING Passed Renishaw laser interferometer testing MILLING CHUCK 1 Standard with BT40 Milling chuck

CONTROL SYSTEM Standard: GSK25I / KND1000 control . TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm 24 tool magazine . 2. tool change time only 2-3 seconds. TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI AIR STORAGE TANK Air storage tank to ensure the stability of spindle tool change. AIR GUN AND WATER GUN High-pressure air guns and high-pressure water guns SNEIDER ELECTRICAL COMPONENTS 1. with Snder safety electrical components 2. Quick plug as standard LUBRICATION SYSTEM with HERG Automatic centralized lubrication device TESTING Passed Renishaw ballbar testing LOCK KNIFE BLOCK Standard with lock knife block .

Dongguan Socay CNC has : More than 80,000m² of the factory with more than 200 workers.(including the cnc machining factory) Strictly QC control with more than 24 steps testing processes. 30+ years CNC machine manufacture experience factory. 24 hours online service at any time. Trade with customers in 100+ countries around the word . Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect. Support ODM OEM. Warranty time is 18 months. Adhering to the "Best Machine by Socay" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.

Dongguan Shuokai Machinery Co., Ltd.. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries .

1: What's your main products of your company? A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center , Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 2:What kind of controlsdo you use on machines? A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements . 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4 : How can I choose the most suitable machines ? A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality. You can also send us product pictures and we will choose the most suitable machine for you. 5 : Do we receive any updates while machine is in the manufacturing process? A : Of course. The progress of the machine will be updated regularly and sent to you.
