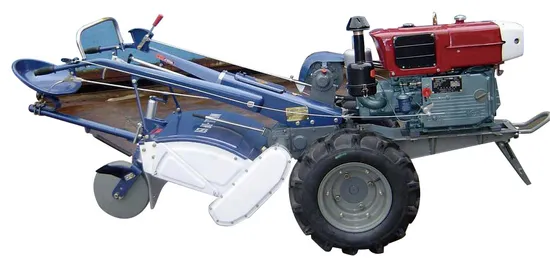

Farm Small Tractor Two Wheel Hand Driven Tractor Cultivators Ploughing Machine

Product Description

Product Description

Model of Power Tiller		Unit	DF-15	GN-15
Structure Weight	Without Rotavator	kg	360	363
	With Rotavator		465	468
Working Weight(With Rotavator)		kg	505	508
Turning Speed Of Rototilling Shaft		rpm	188	199/250
Overall Dimension(L*W*H)		mm	2680*960*1250
Number of Blade		PCS	18
Rototilling Width		mm	600
Type of Tractor			Single axle,dual-purpose for both traction&drive
Travelling Speed	Forword	km/h	1.4,2.5,4.1,5.3,9.4
	Reverse		1.1,3.8
Tyre Size			6.00-12
Wheel Track		mm	800,740,640,580(normally use 800)
Model Of Engine			S1100A2N
Type Of Engine			Horizontal 4-stroke
BorexStroke		mm	100x115
Total Displacement		L	0.903
Conpression Ratio			19.5:1
Turning Speed Of Crankshaft		rpm	2000
1-Hour Rated Output		kw/hp	10.5/14.3
12-Hour Rated Output		kw/hp	9.8/13.33
Specific Fuel Consumption		g/kw*h	257	250
Cooling Mode			Condenser(Radiator)
Main Fram Implements			Sprinkler Model 8Y-80 Swather/reaper Model 4GL-120 Cultivator drill Model 2BG-6A Trailer 7C-1BH(Hydraulic dumping)
