Basic Info.
Type
Planer type Milling Machine
Automatic Grade
Automatic
Dimension(L*W*H)
12210*2385*2545mm
Transport Package
Nude Package, Container
Specification
12210*2385*2545mm
Product Description

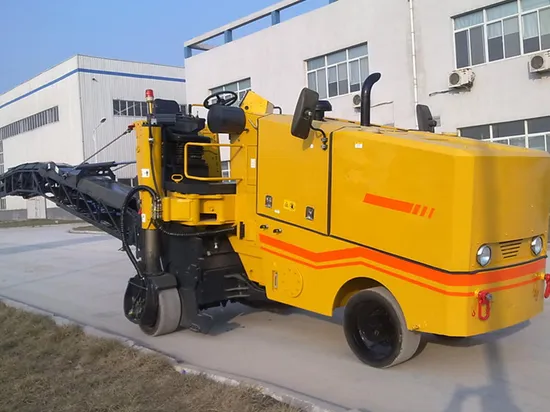

Chinese Top Brand Hot Sale Cold Milling Machine SM100T-3 with Factory Price for Sale
Product Description
Drive system
103kW power works with 6.6t operating weight to achieve powerful operating capacity and good working condition adaptability.
High traction force and powerful large-depth milling capability.
Working device
The optimized cutter arrangement and excellent manufacturing accuracy guarantee low operating vibration of machine.
Detailed Photos
Product Parameters
Parameter name | SM100MT-3 (Standard version) |
Performance parameters | |
Operating weight (Kg) | 15200 |
Transport weight(Kg) | 14500 |
Maximum milling width (mm) | 1000 |
Maximum milling depth (mm) | 300 |
Engine | |
Engine model | SC9D |
Rated power/rated speed (kW/rpm) | 160/2200 |
Overall dimensions | |
Overall dimensions of machine (mm) | 12210*2385*2545 |
Driving performance | |
Traveling speed (km/h) | 0-8 |
Working speed (m/min) | 0-30 |
Conveyor System | |
Width of conveyor belt (mm) | 500 |
Swing angle of conveyer (Rightward/leftward) (°) | 25/20 |
Tank capacity | |
Fuel tank (L) | 540 |
Working device | |
Number of milling cutters (Piece) | 94 |
