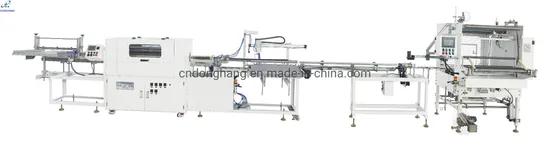

Automatic Cup Curling Machine and Automatic Cup Packing Machine

Automatic Cup Curling Machine and Automatic Cup Packing Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
DHJBJ-120-4 and DH-650
Automation
Automatic
Certification
CE
After-sales Service
on Line
Speed
600-900PCS/Minute
Capacity
10-25PCS/Min
Air Pressure
0.6MPa
Size
5200*1100*1300mm
Transport Package
Wooden Packaged or Stretch Film Packaged
Specification
CE, SGS
Trademark
DONGHANG
Origin
China
HS Code
84774090
Production Capacity
50 Sets/Month

Product Description

RUIAN DONGHANG PACKING MACHINE CO.LTD.Which is a professional manufacturer as well as plastic thermoforming machine. the innovative development and the pursuit ofperfect idea, we had successed produced Negative Forming(Vacuum Machine, Hydraulic Vacuum Forming Machine,Foam EPS Thermoforming Machine,Hydraulic Cutting Machine,Hydraulic Cover Forming MachinePlastic Cup Curling Machine and Cup Counting Machine,also together with moulds.
We has passed the CE Certificationin strict accordance with quality standards productionwe have won the honorand good image in manufacture industrialour products are well sold throughout the country and exported to East Asia Southeast Asia,Europe,Middle EastAfrica and South America and so on"QUALITY+SERVICE==SUCCESSiS our consistent aim, we sincerely cooperate with clients from home and abroad old and new to develop commonly hand in hand!
Product Description
The machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup and pack the cups.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.
Max. Speed of Curling 600-900pcs
Max. Dia. Of Curling 50-120mm
Main Motor 1.5Kw
Feeding Motor 0.09Kw
Heating Power 10Kw
Overall Size 5200×1100×1300mm
Power 380V/50HZ
Weight 0.9T
Air Pressure 0.6MPa

AUTO.PLASTIC CUP PACKING MACHINE
Model:DH-650 Technical Parameter
Capacity 10-25pcs
Dia of Curling 40-95mm
Packing length 520-650mm
Packing Material HDPE,LDPE,PP,POF
Thickness of Packing Film 15-40um
Total Power 4.5kw
Air Source 0.6Mpa
Weight About 700kg
