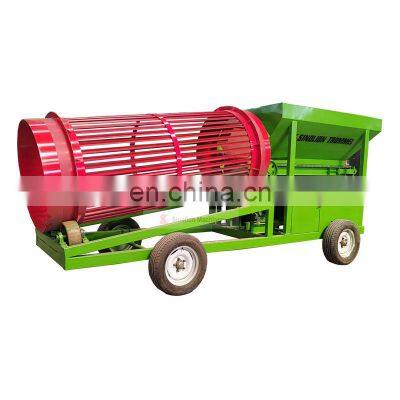

Small and mobile firewood trommel screen manufacturer price

Product Description

Product Description
Product DescriptionFirewood Tumbler is suitable for particle classification process in various industries. The barrel of the drum sieve is made of wire mesh or steel plate punched holes. The barrel can rotate around a horizontal axis or a slightly inclined axis. The drum is rotated by a motor through a chain, gear or friction device. This new type of drum sieve utilizes the angle to make the material pass through the sieve and move forward in the sieve barrel. The material is brought to a certain height in the cylinder and then falls, which is beneficial to improve the screening efficiency. Drum sieve can also effectively prevent clogging. Soil screener specifications: Model CapacityPowerScreen DiameterScreen LengthDischarge SizeInput SizeDimension(L×W×H)Weight(t/h)(kw)(mm)(mm)(mm) (mm)(mm)(Kg)GTS1015503.0100015000~100≤3002600×1400×17002200GTS10201004.0100020000~100≤3003390×1400×21402800GTS12251605.5120025000~100≤3004146×1600×26804200GTS15302507.5150030000~100≤3004460×1900×28205100GTS154535011150045000~100≤4005960×1900×30806000GTS184845015180048000~100≤4006500×2350×40007500GTS205560022200055000~100≤4007500×2550×48009600GTS226580030200065000~100≤4008500×2750×500012800 Features of soil screener:1. Trommel Screen Mesh Material2. Bearing and Bearing box3. The Spindle is made of oil drilling rod material4. The hub is made of thicken flat steel. 5. Motor and Reducer 6. The machine frame using national standard channel steel or square steel.7. Inlet and outlet Design8. Can be installed belt conveyor for undersize material all-in-one machine, conveying height can be up to 4.5 meters to 6 meters, which convenient for loading and move, will save space and save your installation cost.9. The trommel screen can be equipped with remote control device.10. Can be equipped with pumps for cleaning materials. 11. Can be equipped with diesel engine for non-electric users.12. Can be equipped with cleaning screen mesh device to prevent the block problem of below 3mm mesh.13. Can be installed heavy hopper for different loader (16, 20, 30,50 model) feeding.14. Can be installed tyre easy to move.15. Can be equipped with adjustable-speed motor or variable frequency motor used to adjust the trommel rotate speed to meet requirements of customers for different materials screening. Trommel screen rotate speed is 16-18r/min, maximum must < 30r/min or it will form centrifugal force. 16. In a word, one customer one request and the trommel screen will be different. Trommel sieve screen could also used for sandstone, topsoil, compost, municipal solid waste recycling plant, glass, mulch, organics, bark, wood chips, construction waste, etc. Packaging & Shipping Working siteOur ServicesCompany InformationFAQQuestion 1: What’s the delivery time after I pay the deposit ? Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment. Question 2: Is mineral samples analysis available?Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection. Question 3: Do you have client in my country?Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc Question 4: How long of your machine quality guarantee terms ?Answer: Quality guarantee time is one year(wearing parts excluded).
