Taima Volumetric Mixer for Automatic Proportional Mixing

Product Description

Product Description

Controlled by microcontroller, and consists of LCD screen and keyboard.e Simple operating sstem interface with troubleshooting tunction.
Equipped with imported brushless gear motor that is free from maintenance.Conveying accuracy is between 1% and 5%.
Store up to 50 program recipes.
Automatically stops and alarms for material shortage(optional).jammed conveyor, and overloaded motor.
Modularized stuture for easy inltlalo maintenance and replacement.Chrome plated screw is reliable.
2 ports for exenal inputs (ie. ijectiono molding machine and extrudermachine).
There re2 szes of screw avalble for dfent output requretCleaning function can discharge residual materials.
Alserte can be opon equiped with bender for beter ming terils
Taizhou Taima Automation Technology co,LTD, founded in 2009, has beencommitted to the plastic molding automation equipment research anddevelopment work in innovation, based on one-stop service turn-keyproject, continuously development introduced international advancedhigh-tech environmental protection products.
Units of unremitting efforts to participate in the scheme the trial productionof new products, assist you more quickly and more economic highvalue-addeproducts, for customers to create the first-class factoryautomation, realize the goal of win-win, create greater wealth for clients.
The company is located in China mold town-taizhou huangyan, is a collectionresearch and development, manufacturing, quality assurance. sales throughtrain enterprises. Product Parameters

sechnical parameter
Model		TMQ60-12	TMQ36-14	TMQ36-16	TMQ60-12DM	TMQ36-14DM	TMQ36-16DM
(kg/hr)Out put		0.3~3	0.5~5	0.8~10	(0.3~3)x2	(0.5~5)x2	(0.8~10)x2
(W)Motor power		50	50	50	160(50x2+60)	160(50x2+60)	160(50x2+60)
(rpm)Motor rotary speed		0~3000	0~3000	0~3000	0~3000	0~3000	0~3000
(L)Materials barrel		10	10	10	10x2	10x2	10x2
Reduction ratio		30:1	30:1	30:1	30:1/30:1	30:1/30:1	30:1/30:1
(mm)Screw diameter		12	14	16	2-12	2-14	2-16
Extemal	H(mm)	771	771	771	1377	1377	1377
	W(mm)	325	325	325	325	325	325
	D(mm)	667	667	667	667	667	667
(kg)Net weight		16	16	16	30	30	30

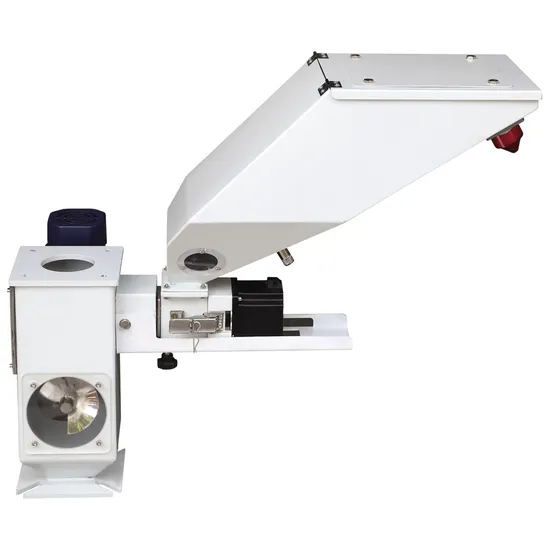

Detailed Photos
