Track Bolt, Rail Bolt, Hook Bolts, Anchor Bolts,

Product Description

We are professional manufacture and export DIN933/DIN931 Full Thread Half Thread Hex Bolt Hex Bolt with Nut with Washer.
Product Description Hex Washer Head Self Drilling Screw Self Drilling Tapping Screw Tek Screw 1> Description: Hex Washer Head Self Drilling Screw Self Drilling Tapping Screw Tek Screw 2> Material: Stainless Steel, Alloy Steel, Steel, Brass 3> Surface: Zinc Plated, Painted...Passicvated 4> Size: 2.5mm (#6) up to 6.3mm (#14) 5> Length: Up to 150mm (6 Inch) 6> Head style: Round Head. Pan Head, Flat Head, Hex Head, Oval Head, Truss Head... 7> Drive size: Phillips, Slotted, Pozi, Six-lobe, Square... 8> Packing: Small box. Carton or according to customers' req Specifications Hot Sale Zinc Plated Self Drill Screw 1. High Quality 2. Fast delivery 3. Reasonable Price 4. ISO9001: 2008 Certification

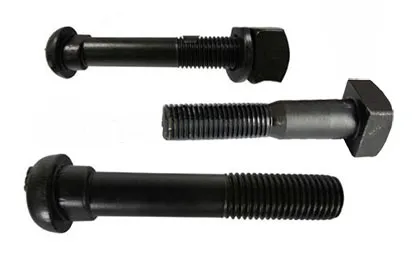

Rail Bolt Rail Bolt Basic Types YONGYANG manufacture a wide range of the Rail Bolts, or named track bolts, which includes Clip Bolts, clamp bolts, Anchor Bolts, and Hook Bolts etc, most of all the bolts made from the hot forging production engineering ,available for different Rail fastening systems from different Countries' Railway and Tunnel Constructions etc, we are specialized in producing the big diameter bolts, Strength Grade available for 4.6,5.6,8.8 and 10.9 etc .The surface treatment with Black Oxide, Zinc Plating,Hot dip galvanized etc ,it depends on the specific requirements ,drawings etc. Fish boltHS26/HS32 fish bolts for ribbed base plate are available in various dimension as below, as per UIS864-2 Material: Q235, 35# and 45# Grade: 4.6, 5.6, 8.8 Surface: Plain, black painting

	Type	Dimension	Weight (Kg)
	HS26/55	M22 ×55/40 Nut M22/H22/S39	0.45
	HS26/65	M22 ×65/45 Nut M22/H22/S39	0.475
	HS26/90	M22 ×90/45 Nut M22/H22/S39	0.549
	HS32/55	M22 ×55/40 Nut M22/H22/S39	0.469
	HS32/65	M22 ×65/45 Nut M22/H22/S39	0.503
	HS32/90	M22 ×90/45	0.577

Clamp bolt and inserted bolt for the Russian marketMaterial: Q235, 35# and 45# Grade: 4.6, 4.8, 5.6, 8.8 Surface: Plain, black painting

	Item	Dimension	Weight (Kg)
	Clamp bolt with nut	M22 ×75 M22/S36/H22	0.475
	Inserted bolt with nut	M22 ×175 M22/S36/H22	0.78

Clip bolt

Clip Bolts	Standard Reference	Type	Finish	Grade	Raw Material
	UIC864-2 NF F 50-008 ISO898-1	M18, M20, M22, M24, M27, etc	Plain & Oiled, Oxide Black, Zinc Plated, Hot Dip Galvanized, etc	4.6 5.6 8.8	Low Carbon Steel Medium Carbon Steel

Anchor Bolts

Anchor Bolts	Standard Reference	Dia Type	Finish	Grade	Raw Material
	NF F50-010 DIN529 ISO898-1	M18, M20, M22, M36, (M16-M48)	Plain & Oiled, Oxide Black, Zinc Plated, Hot Dip Galvanized, etc	4.6 5.6 8.8	Low Carbon Steel Medium Carbon Steel Alloy Steel

Hook bolt

Hook Bolts	Standard Reference	Dia Type	Finish	Grade	Raw Material
	UIC864 DIN529	M20-M36	Plain & Oiled, Oxide Black, Zinc Plated, Hot Dip Galvanized, etc	4.6 5.6 8.8	Low Carbon Steel Medium Carbon Steel Alloy Steel

Track bolts are used to fasten rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt an be determined by checking the applicable railway standard. The track bolts can be classified into several types, such as, Button head oval neck track bolt, Diamond neck track bolt, Rail bolt NF F50-008, Fish bolt, Track bolt of Russian standard and other special bolts, etc. How does Rail Bolt work? Track bolts are used to fasten rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt an be determined by checking the applicable railway standard. The track bolts can be classified into several types, such as, Button head oval neck track bolt, Diamond neck track bolt, Rail bolt NF F50-008, Fish bolt, Track bolt of Russian standard and other special bolts, etc. Application Criteria of Track Bolts According to basic rules and rail standards, each rail joint needs to be bolted with at least two bolts in each rail tightened to generate approximately 400 foot-pounds of torque, which approximately develops between 25,000, and 30, 000 pounds of tension force in the bolts. Bolts in use have to be in the proper size and tightly in place. Bolts have to be installed with AREMA spring washers whereas the nuts have to be installed against the spring washer. Bolts have to be installed and the nuts have to installed alternately on the inside and outside of the rail. When bolts and joint bars are moved away, the joint area of the rail and the contact surface of the joint bar have to be cleaned and the joint bar and the bolt threads have to be lubricated. Safety standards require that on operation are permitted over rails where all bolts are missing or ineffective YONGYANG Railway manufactured almost all the Track Bolts what meet the worldwide railway standards, its also our factory's conventional products.
