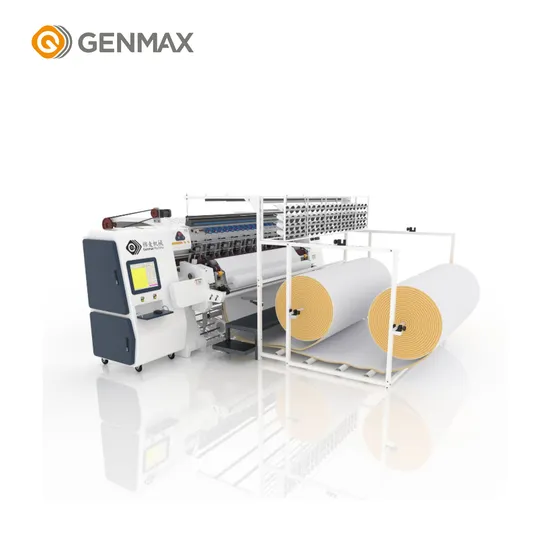

Mattress Borad Making Machine Mattress Industrial Sewing Machinery

Mattress Borad Making Machine Mattress Industrial Sewing Machinery

US$29,000.00-35,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
MX5
Condition
New
Certification
CE, SGS
Application Place
Factory
Applicable Thickness
Thick Material
Drive
Electric
Thread Number
Double Threads
Needle Number
Multi Needle
Stitch Type
Chain Type
Distance Between Needle
25.4mm
Quilting Thickness
<80mm
Stitch Length
3-8mm
Productivity
60-300 (M/Hour)
Main Shaft Speed
500-1200rpm
Dimension (L X W X H)
5400*1650*2050mm
Transport Package
Wooden Case
Specification
Set
Trademark
Genmax
Origin
China
HS Code
84522190
Production Capacity
90sets

Product Description

If you need more detailed information and other models, please email us. We will promptly reply to you. Distance between needles is 0.5 inch and more patterns can be chosen from, which pioneer in the industry. Can the fabric be slit accurately?
Yes. Fabric can be slit more accurately (range: 80-400mm) because of the slitting device, which pioneers in the industry. The small moving needle board makes the patterns more accurate when the machines works on special fabric and can be disassembled easily when the machine works on other kinds of fabric, which pioneers in the industry and raises the productivity. Equipped with different kinds of cloth cylinder and can produce a large number of curtains with cloth one time. All cloth can be finished on one machine or the combination of two machines. Equipped with automatic oil-supply system, which not only pioneers in the industry but also raises the productivity and lengthens the life of devices. Advanced computer controlling system and machine making craft make the performance better and the speed faster. The production is raised. The fabric is kept away from dirt because the double rocker arms without cams are introduced to the needle bar and plate. Can stop working automatically for personnel safety when bottom and top thread break or end or when rear or front covers are opened. Main shaft is controlled by frequency conversion system and the automatic needle lifting frame adopts servo device. The speed can be controlled by computer and can reach 1200 rpm. The distance between needles can be set in the range of 3-8mm. Can be set to stop working automatically when the quilting is finished.
Model MX5 Dimension (L x W x H) 5400*1650*2050mm
Weight 5500Kg Quilting width 2450mm
Distance between needle bar 50.8, 76.2, 127mm (5'')
76.2, 76.2, 152.4mm (6'')
Distance between needle 25.4mm
X-axis movement displacement 304.8mm Quilting thickness ≤80mm
Stitch length 3-8mm Productivity 60-300 (m/hour)
Type of needle 24/180 23/160 22/140 21/130 Main shaft speed 500-1200rpm
Voltage 380v/50hz 220v/60hz, 3-phase Power 10kw
