Y24/Ty24c Portable Air Rock Drill

Product Description

Y24/Ty24c Portable Air Rock Drill
Why Choose Us?
Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones.
1.Product Description
1. Y6, Y20, Y24&TY24C are intended for dry drilling,
2. YO18, Y19A, Y20LY, YH24&Y26 are for wet drilling.
3. Suitable for either drilling downward or incline of blast holes in medium-hard rock, of for second blasting operation.
4. Centrally grouped control, nimble starting, stable running and easy maintenance.
This type rock drills use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.
YT24 YT28 pusher leg rock drills always works with support air leg, can be used for any angle drilling.
Y6, Y20, Y24, and Y26 hand held rock drills works without air leg, mainly use for downwards drilling.
2.Specification

Type	Y6	YO18*	Y19A*	Y20	Y20LY*
Weight (kg)	6	18	19	18	18
LxW(Handie)xH (mm)	426(Length)	550x534x157	600x534x157	605x485x110	609x198x135
Cylinder stroke(mm)	/	58*45	65*54	63*55	63*55
Air Consumption (L/s)	≤9.5	≤25.5	37~43	25	≤25
Air hose size (mm)	13	19	19	16or19	16or19
water hose size (mm)	/	8	13	/	8
Bore dia (mm)	20	32-38	32-42	32-42	32-42
Drilling depth (m)	0.5	5	5	5	5
Shank (mm)	15x88	22x108	22x108	22x108	22x108

Type	Y24	TY24C	Y26	YH24
Weight (kg)	24	24	26	24
LxW(Handie)xH (mm)	604x485x162	610x485x158	650x534x125	604x485x162
Cylinder stroke(mm)	70*70	66.7*68	64*70	70*70
Air Consumption (L/s)	55	≤45	≤50	55
Air hose size (mm)	19	19	19	19
water hose size (mm)	/	/	13	13
Bore dia (mm)	32-42	32-42	32-42	32-42
Drilling depth (m)	5	5	5	5
Shank (mm)	22(25)x108	22x108	22(25)x108	22x108

2.Advantages
A: Reasonable design
B: Convinient operation
C: Fast drilling velocity
D: Engery-saving
E: Efficient
F: Long service life of parts
G: Parts highly interchangeable and reliable performance etc
H: Both hand held and with airleg available.

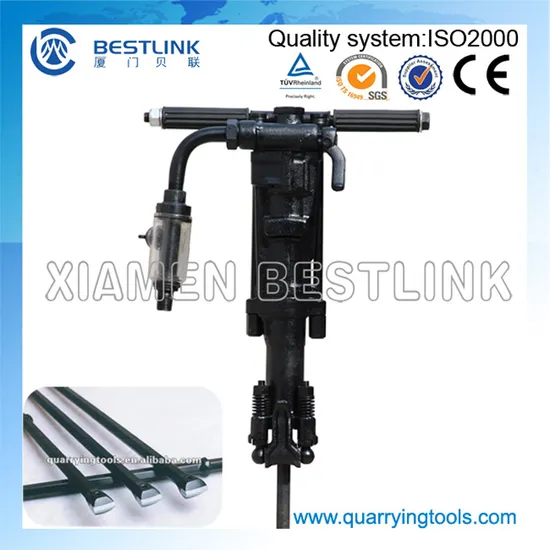

3.Product pictures
