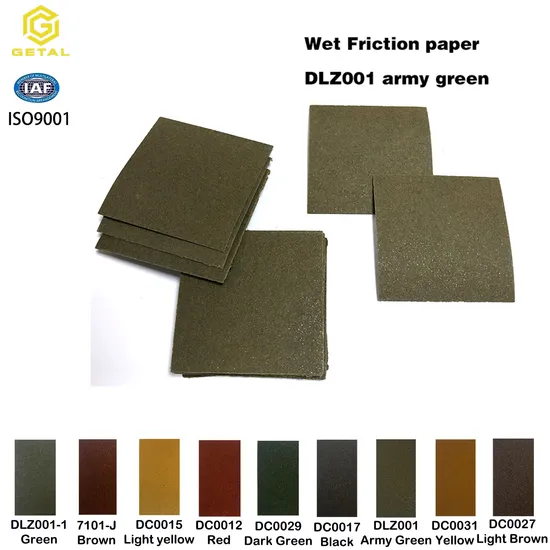

High-Performance Wet Friction Paper for Automotive & Industrial Use Custom Sizes & OEM Available

Product Description

Product Description High Performance can Support Customized Wet Friction Material Paper Manufacturers

Getal, China's leading supplier of Friction Materials, specializes in providing high-quality solutions tailored for automobiles and industrial applications.
Wet Paper-based friction paper is widely used in a variety of complex and harsh working environments, showing excellent high-temperature stability, high load-carrying capacity, moisture and oil resistance, high-speed friction resistance, chemical corrosion resistance and low noise. These properties make it an indispensable friction material in the automotive industry, heavy machinery and various types of industrial equipment. Main features and advantages:
★ Good lubrication care
★ High friction performance
★ Excellent wear resistance
★ Thermal stability
★ low noise
★ Environmental protection
Application areas
Paper-based friction paper is mainly used in the following fields:
· Automotive industry: used in the manufacture of automobile clutch plates, brake pads and friction elements in automatic transmissions.
· Construction machinery: clutch and braking systems in heavy equipment such as excavators and loaders.
· Industrial equipment: various mechanical transmission devices, braking systems and clutch devices.
Product Parameters

Product Parameters
Material:	Wet paper-based friction materials& Wet paper-based friction disc
Raw material (component):	45-55% fibre (aramid fibre, carbon fibre,composite reinforced fibre, etc.); 20% functional raw materials; remaining filling material (Aluminium oxide, silicone soil, color mixing materials, etc); After the paper is dipped in glue, the glue content is of 23-30%.
Size:	Paper width from the automatic paper production line: 600mm Diameter range <=600mm, Paper thickness: 0.6~2.5mm
Industrial Standard:	GB/T 13826-2008 Wet type (non-metallic) friction materials GB/T 21955-2008 Tractor and machinery for agriculture and forestry --Paper friction disc-- Technical specifications GB/T 37208-2018 Nonmetallic paper based wet type friction materials GB/T 15141-2009 Test method for friction element of wet clutch
Applications range:	Engineering machinery: Excavator, Loader, Bulldozer, Paver, Reach stracker, Crane etc. Agricultural and forestry machinery: Tractor, Harvester and corresponding equipments Logistic machinery: Forklift truck, Port logistic machinery Automobile industrial machinery: Reducer, Wet cluth and Wet brake, Motorcycle clutch.
OEM and aftermarket	all types of wet paper-based friction disc, such as for JCB, MF etc.
Process Flowchart	supporting documents
Design (Non-Standard) (performance requirement, application range, sample, drawing etc.)	Drawing; general industrial documents or PPAP dokuments Prototype, first sample, Serie products
Paper friction layer	Material Test Report, Automatic production line of friction paper layer
Dies manufacturing (Paper Ring)	Drawing; Prototype, first sample, Serie products
Paper ring cutting	Drawing, Process control sheet
Dipping in glue	Used glue according to customer's requirement
friction disc	Drawing, Process control sheet (SOP, control plan)
Inspection and Packaging	Inspection report (Inspection plan) ; Packaging Fotos
Shipment	Invoice & Packing list, other necessary files

Specifications
Application range	Specific pressure Mpa	Rotational speed m/s	Oil temperatur °C	Dynamic friction coefficient Ud	Dynamic friction coefficient Us	Wear rate (x10-8cm3/J)
Motorcycle	0.5	15	<=100	>=0.16	>=0.20	<=6
Automobile	0.8-1.5	15	<=100	>=0.13	>=0.15	<=3
Engineering machinery	1.0-3.0	25	<=100	>=0.11	>=0.13	<=5

Friction material Paper Ring Dimensions
Ring No.	Outer diameter mm	Inside diameter mm	Thickness range mm
HQR0101	125.00	81.00	0.6-2.5
HQR0102	141.00	102.00	0.6-2.5
HQR0103	150.00	90.00	0.6-2.5
HQR0104	165.00	110.00	0.6-2.5
HQR0105	163.30	116.00	0.6-2.5
HQR0106	180.00	80.00	0.6-2.5
HQR0107	180.00	120.00	0.6-2.5
HQR0108	182.00	143.00	0.6-2.5
HQR0109	182.50	129.50	0.6-2.5
HQR0201	212.00	172.00	0.6-2.5
HQR0202	242.30	197.00	0.6-2.5
HQR0203	254.50	210.00	0.6-2.5
HQR0204	267.50	220.00	0.6-2.5
HQR0205	275.00	175.00	0.6-2.5
HQR0206	276.00	226.00	0.6-2.5
HQR0207	286.00	230.00	0.6-2.5
HQR0208	298.00	200.00	0.6-2.5
HQR0209	298.00	225.00	0.6-2.5
HQR0301	300.00	195.00	0.6-2.5
HQR0302	310.00	227.00	0.6-2.5
HQR0303	325.00	200.00	0.6-2.5
HQR0304	344.00	230.00	0.6-2.5
HQR0305	345.00	264.00	0.6-2.5
HQR0306	359.00	260.00	0.6-2.5
HQR0307	365.00	268.00	0.6-2.5
HQR0401	400.00	317.00	0.6-2.5
HQR0402	428.00	277.00	0.6-2.5
HQR0403	445.00	314.00	0.6-2.5
HQR0404	495.00	335.00	0.6-2.5

Company Profile Our company has a technical research and development team composed of engineers doctors and masters with a solid theoretical foundation and rich experience, engaged in paper-based friction material research and development and technical services, having a wet friction material test bench and other testing instruments, automatic production lines of paper layer and spacious production sites that meet various specification of the industry (all have passed various verifications). We specialize in the production of paper-based friction materials sheet products with various requirements, in order to avoid the troubles caused by the continuous improvement of safety and environmental protection standards of downstream enterprises and to provide the downstream enterprises with guarantee for the long-term stable development. At the same time, the professional advantages of the company's team can meet the special requirements of downstream companies that continuously improve their quality and performance.
We are a professional team, only engaged in research and development, production and service. We sincerely hope to provide downstream enterprises with high-quality products and excellent services. Win-win cooperation is your common choice!
Related Product
Packaging & Shipping
FAQ Q1 what are your terms of payment?
A:T/T 50% in advance and balance 50% before shipment.
Q2 How about your delivery time?
A:Usually 20 days for 2 tons.
Q3Can you produce according to the samples?
A:yes,we can produce by the samples customer confirmed.
Q4 what is your sample policy?
A:we can provide free existing samples,but customers need to pay for express delivery. Samples paper size is 300x300mm,thickness is the existing thickness in stock.Samples are sent out in 3-5 days by express.
Q5 what are your term of packing?
A: Generally,plastic bag +Carton+pallet.
Q6 what are your terms of delivery?
A:EXW. FOB.
Q7 How do you make our business long-term and good relationship?
A1:we keep good quality and competitive price to ensure our customers benefits.
A2: we respect every customers as our friend and we sincerely do business and make friends with them,no matter where they come from.
