15m3 Cryogenic Liquid Nitrogen Liquid Oxygen Tanks for Sale

Product Description

Product Description
15m3 Cryogenic Liquid Nitrogen Liquid Oxygen Tanks for Sale

Medium	LN2,LO2,LAr,LNG
Effective Volume	15m3
Working pressure	1.6MPa/16Bar
Overall dimension	Φ2500×6952mm
Design temperature	-196ºC--40ºC
Outer cylinder material	Q345-R
Inner cylinder material	S30408
Insulation	Vacuum powder insulation

JX Liquid Oxygen Nitrogen and Argon Storage tank is a double cylinder structure, tube and pipe were used austenitic stainless steel manufacturing, outer cylinder with Q235-B/Q345R manufacturing, sandwich filled with perlite, and vacuum pumping, and setting the after special treatment of the adsorbent to extend the life of vacuum tank.
Notice: GB standard cryogenic storage tanks are normally in stock, 10 days for fast delivery!!!
Brief introduction:
Cryogenic Storage Tank for Lox/Lin/Lar/Lco2 with ASME/GB Standard can be customized with different specifications and materials according to application scenarios and gas storage categories. It has compact structure, centralized control, safe and reliable, and convenient operation and maintenance. This system offers the most effective solution for centralized gas supply, surpassing traditional steel cylinder gas storage in terms of benefits, such as ease of transportation, energy efficiency, safety, reliability, purity assurance, and versatile compatibility.
Vetical type and horizontal type cryogenic storage tank for option
Main Features:
Cryogenic Storage Tank for LOX/LIN/LAR/LCO2 with ASME/GB Standard is equipped with liquid inlet pipelines at the top and bottom to realize the unloading and filling of differential pressure and cryogenic liquid pump. A double safety valve (or bursting disc) is set to discharge in case of overpressure to protect the safety of the inner container. Vacuumize and measure the vacuum pipeline, ensure the insulation performance of the interlayer, and the explosion-proof device of the shell can discharge gas in case of leakage of the inner container to avoid serious damage and danger. It has the advantages of large reserves, low evaporation rate, safety and reliability.

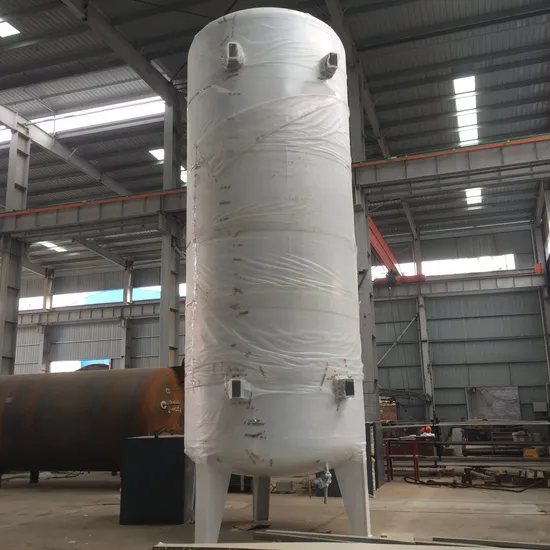

Detailed Photos
We pay more attention to each detail for high quality product.
Application
Production Process
Strict quality control for longer service life.
Packaging & Shipping
Cryogenic storage tank will be packaged by waterproof plastic woven clothes, and loaded into container or by bulk ship.

Company Profile
FAQ
1. Are you a manufacturer or a trading company?
Answer: We are Chinese professional manufacturer for cryogenic liquid gas storage tanks over 46 years.
2. Is there dicount if with large qty.?
Answer: Sure, we will provide you best competitive price as per your working needs, and big dicount with more qty.
3. What's your main product?
Answers: We have cryogenic storage tanks for liquid O2, liquid Ar2, liquid N2, and Liquid CO2, both vertical type and horizontal type.
Also we have smaller type liquid nitrogen containers with various volumes from 2L to 100L.
4. Can I visit your company?
Answer: Yes, of course, you are welcome to visit our company for face to face meeting.
5. How shall I contact you for price?
Answer: Please send us inquiry.
