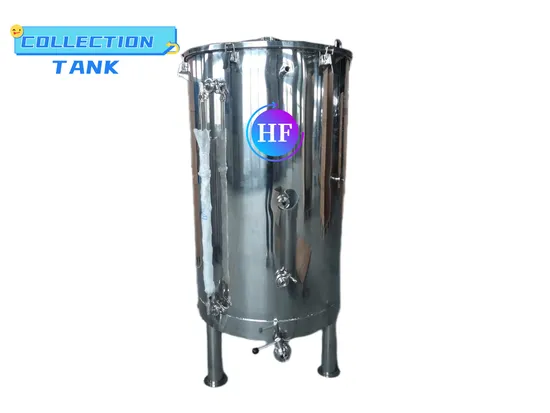

Moveable Stout Tank Kettle Hot Liquor Tank

Product Description

Product advantages

Founded in1996,Ningbo Hefeng kitchen utensils manufacture Co.,Ltd is devoted to the R&D,development and manufacturing of stainless steel beer kegs.Over the past 12 years,the company has accumulated extensive experience in manufacturing beer kegs and established a professional team in R&D and production.Situated in Ouchi Industrial Zone,Guling Town of Ningbo,the company conveniently neighbors the airport,expressway andrailway station.
It boasts various dedicated large strething equipment,independently-developed welding equipment,professional surface treatment equipment,and reliable quality control systems for a whole set of products.It has passed the ISO9001:2008 interational quality systems certification.Upholding the philosophies of "being honest,innovative,pragmatic and efficient",the company offers customers both at home and abrad reliable beer kegs and considerate services.

Materials:SS304 Or SS316
Can be Non movable or movable
Size range:5L-10000L
100% sanitary built and food grade
Mirror Polish or Brushed Polish Inside and outside
Application:Brewery,distillery,other beverage drinks etc

	Fermentation Tank / Unitank/ Storage tank /Bright tank
	Liter	Size Range:75L-300HL/ US 1/2bbl-250bbl
	Materials	Materials:SS304,
	Surface Treatment	Inside:Mirror Polish or Passivate inside, Outside:Mirror Polish or Satin Polish,
	Pressure date	Inner working pressure at:0-2bar, Inner testing pressure at:2.5bar, Jacket working pressure at:0-2bar, Jacket testing pressure at:6bar, Insulatation Materials:Polyurethane foam, Dished head top 60degree conical bottom or customized,	Outlet 4" Top dia:310mm Outlet 6" Top dia:350mm
	Fitting Valve	Glycol inlet Glycol outlet TC Dry Hop Port &Cap+hook+handle, CIP Spray ball-360deg.&CIP Arm with butterfly valve, Pressure Vacuum&Relief Valve Kit(safety valve), Back mount oil filled/shockproof TC Pressure Gauge, Sample Valve, Thermowell, Extra TC port for carb stone as Unitank DIN OR TC Racking Arm with butterfly valve, Dump outlet with butterfly valve, Extra manway gasket,+Clamps+Silicone Gaskets, Adjustable footpad etc,
	Hop Back	Pressurized design,quick-open Materials:SS304,Sanitary built 1XAdjustable PVRV 1XHigh Quality oil filled pressure gauge 1XUpper inlet valve 1XLower outlet valve 1XPessure release ball valve 1XWedge wire false bottom	15/20/30/40/60/75/100gallons
	Hop Gun Hop Torpedo	Materials:SS304,Sanitary Built 1)Use ball valves,as the flow rate of ball valve is larger than butterfly valve's; 2)Larger drain out 2.5"TC to make sure dump out easily to avoid blocking; 3)High quality filter,laser cutting version,with lock device. 4)High quality parts/gaugesalves etc,and high quality casters; 5)2XCIP rotary cip balls inside; 6)Top fixed on the filter to avoid shaking when do recirculation; 7)Heavy duty design between legs also set up brackets between legs; 8)Conical hopper design on the bottom section,to make sure dump out easily; 9)All sections can be disassembled and can be cleaned easily,100% Sanitary grade; 10)Multi-inlets to make sure that the pellets or hops can be soaked 100%; 11)The bottom ball valve is 3 ways,the middle port will be an inlet when you do recirculation,to make sure no blocking at the bottom of hop gun and to make sure 100% extracted at the bottom,no dead corners.	from 20liter 30liter 50liter to 1000liter is availble
	Hop Infuser/back tilting device	Pressurized design,quick-open Materials:SS304,Sanitary built 1XSemi-Automatic Gearbox,tilting device 1XAdjustable PVRV 1XHigh Quality oil filled pressure gauge 1XUpper inlet valve 1XLower outlet valve 1XPessure release ball valve 1XBasket Options: 1)Heavy duty Casters with legs 2)Motor for automatic tilting	30/40/60/75/100gallon

Product Parameters
