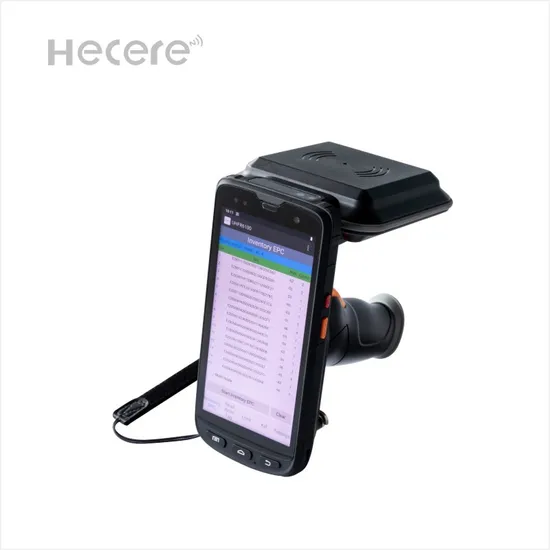

RFID Scanner Reader UHF PDA for Inventory Warehouse Management Software

Product Description

Overview
Before using our products, please read this manual carefully. It can better troubleshoot some faults for you and get a higher product experience.
Product Introduction
This product is an intelligent object-finding system designed based on RFID UHF technology. The application of this system is very extensive. It can be used in every family who has trouble finding things. it can also be used by small businesses that need to manage assets and items. Compared with some traditional search technologies such as Bluetooth, the technology we use has more advantages in tracker cost and ease of use. In terms of cost, the price of our system is a bit high, but once you have one system, you can use large number of trackers because the price of tracker is very cheap. And our tracker do not need power. Once our tracker is attached to the item, you no need to charge power for it, it will accompany the item permanently as a identification.
Core functions 1.Locate items and find items 2.Inventory items and find missing items 3.Scan items and know what it is
Product Advantage 1.Higher positioning accuracy Traditional positioning technologies such as Bluetooth or GPS can only locate the items at a big area, like tell you this item is at home. However, our system can tell you item is in which cabinet and on which shelf at your home. 2.Tracker no need battery Our tracker no need battery. No matter Bluetooth or GPS, once power off then it lost function. But our tracker will never be power off, because it does not need battery. 3.Tracker is thin and small Our trackers are like paper sticker. You can put them on almost anything in your house. 4.Tracker is cheap Our smart finder system is little expensive, but our tracker is cheap. Once you have a system, then tracker is cheap for you. You can use any number of tracker without limitation.
Application Scenario Families who have trouble finding items Collectors who have many collections Store Leasing company Small business manage asset Small business manage warehouse Researcher manage records Farmers manage livestock Pet shop manage animal Factory manage machine parts or tools Etc...
Product Parameter

ITEM	DESCRIPTION
Dimension	166mm(H)x79mm(W)x31mm(D)±2 mm (Not including the shield and pistol grip)
Weight	600g (including battery&wrist strap)
Display	Gorilla Glass 3 9H 5.5 in. TFT-LCD (720x1440)touch screen with backlight
Backlight	LED backlight
Expansions	1 PSAM, 1 SIM, 1 TF
Battery	3.8V, 9000mAh
CPU	Cortex A73 2.0GHz octa-core
Operating System	Android 9.0
Storage	2GB RAM/16GB ROM
Operating Temp	-20ºC to 50ºC
Storage Temp	-20ºC to 70ºC
Humidity	5%RH to 95%RH(non-condensing)
Drop Specifications	5ft./1.5 m drop to concrete across the operating temperature range
Protection Level	IP65, IEC compliance
ESD	±15kv air discharge, ±8kv direct discharge
RFID UHF Specifications	Impinj R2000 of main chip
	920MHz-925MHz of frequency
	Global EPC GEN2 ISO18000-6C protocol
	0-33dBm adjustable power, 3dBi Circular antenna
	0-25m scanning distance (Depends on tracker type)
Software	Hecere Smart Finder software.
Scanning Power&Distance	Add an item: 5dBm fixed, 0-20cm
	Scan items: 5dBm default, adjustable, 0-20cm when power is 5dBm. Scanning distance is up to 25m when power is 33dBm
	Searching: 33dBm fixed, detecting distance is up to 25m
	Inventory: 33dBm fixed, scanning distance is up to 25m
	Note: Reading distance is just for reference, it depends on many factor such as the type of tracker, the angle of detection, the material attached to the tracker, etc.,
