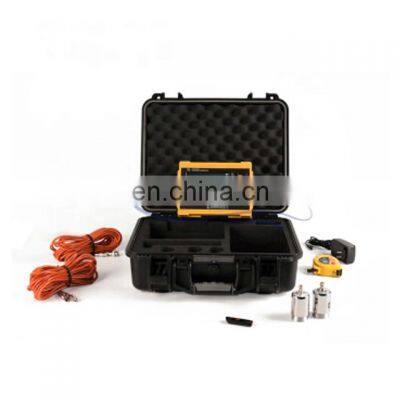

Taijia zbl-u5200 Portable ultrasonic detector Nonmetal Ultrasonic Pulse Detector ultrasonic pulse velocity for concrete

Product Description

Product Description
Product DescriptionZBL-U5200 Multi-channel Ultrasonic detector Nondestructive Evaluation LaboratoryStructural concrete compressive strength, crack depth and defect detectionUltrasonic transmission method for rapid detection of pile foundation, continuous wall integrity;Geological prospecting, rock integrity, weathering evaluation testRock, concrete and other non- metallic materials mechanical properties testingUltrasonic-rebound combined method for testing compressive strength of concreteZBL-U5200 Multi-channel Ultrasonic detector Nondestructive Evaluation LaboratoryDetailed ImagesModelZBL-U5200 Multi-channel Ultrasonic detector Nondestructive Evaluation LaboratoryControl ModeBuilt-in AB industrial control boardMonitor5.7 inch, semi inverse semi penetration, TFTOperating ModeTouch screen & KeysData StorageBuilt in electronic hard disk(≥4GB)+U diskAcquisition ModeSingle channel manual point by point acquisitionNumber of Channels1 emitter+1 receiverTriggerSignalSampling Interval(μS)0.025~1638.4 optional multiple levelsAcoustic Time Accuracy(μS)0.025Acoustic Time range(μS)±1677700Dynarnic Range(dB)154Bandwidth(kHz)3~450Receiving Sensitivity(μV)≤10Gain Accuracy(dB)0.5Transmitting Voltage(V)65, 250,500,1000 optional four levelsWork time(h)>8Power supplyInternal:Built-in BatteryExternal: 220VAC/DCOperational EnvironmentTemperature(℃): -10~+50Humidity (RH) :<90%Analyse systemRelated ProductsZBL-R630A Rebar scanner ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting mediumZBL-R800 Multifuncational Rebar detector ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.HT-225W+ integrity voice report digital concrete rebound hammerHT-225W+ digital test hammer with digital display and voice function, for the quick and easy determinationof the strength of concrete, and hardness of construction materials. Digital and voice functions allow fasterand greater number of test, leading to better quality tests.Company ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:commercial@tmeasurement.comTEL:86-411-39685079Whatsapp:+8618842866177web:/ZBL-U5200 Multi-channel Ultrasonic detector Nondestructive Evaluation Laboratory
