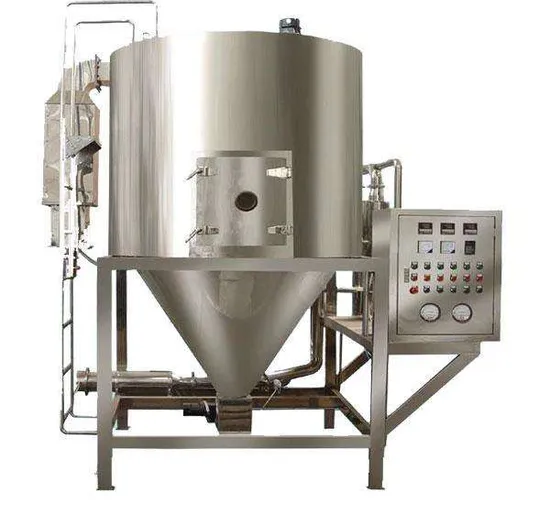

LPG Series High Speed Centrifugal Spray Dryer
Centrifugal Spray Drier for Milk and Coffee is a kind of dedicated equipment for drying emulsion, suspension, paste and solution. After filtering and heating, the air enters into the hot air distributor at the top of the Centrifugal Spray Drier for Milk and Coffee, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the Milk and Coffee spray drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.

Item/Model	LPG
	5	25	50		100	150		200-2000
Inlet Temperature (ºC)		≤ 350
Outlet Temperature (ºC)		80 to 90
Maximum Moisture Evaporation (kg/h)*	5	25	50		100		150	200-2000
Drive type of Centrifugal Spray Nozzle	Compressed air drive	Mechanical drive
Rotating Speed	25000	22000		21500	18000	18000		15000
Diameter of Spray Disk (mm)	50	102		108	108	150		180-340
Heat Source	Electricity	Electricity		Electricity+ steam, fuel oil, gas	Electricity+ steam	Electricity+ steam, fuel oil, gas		Depending on users
Maximum Power of Electric Heating (kw)	8	31.5		60	81	99
Overall Dimensions (L × W × H)	1.8 × 0.93 × 2.2	3 × 2.7 × 4.26		3.7 × 3.2 × 5.1	4.6 × 4.2 × 6	5.5 × 4.5 × 7		According to the actual situation
Dry Powder Recovery (%)	≥ 95	≥ 95		≥ 95	≥ 95	≥ 95		≥ 95

PRODUCT INTRODUCTION
Working Principle of LPG Series High Speed Centrifugal Spray Dryer After filtering and heating, the air enters into the hot air distributor at the top of the Centrifugal Spray Drier for Tapioca Flour, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the Cassava drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.
