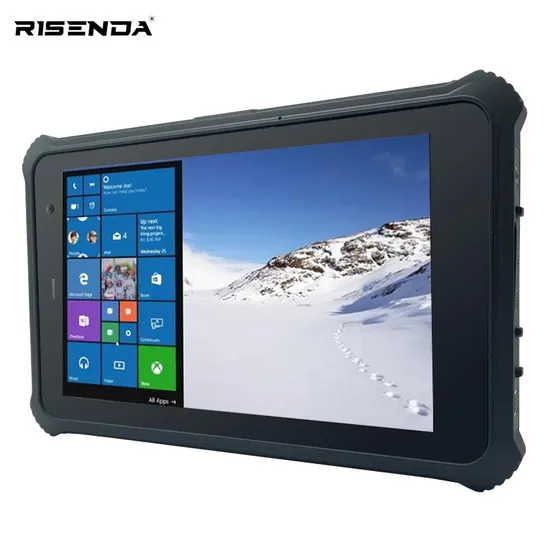

Three-Proof 10 Inch 1280X800 IP67 Waterproof 4G Industrial Rugged Tablet

Three-Proof 10 Inch 1280X800 IP67 Waterproof 4G Industrial Rugged Tablet

US$475.00-557.00 1 Piece (MOQ)

Basic Info.

Model NO.
RSD-10Z
Durability
Waterproof
Fingerprint
Fingerprint
Front Camera Pixel
1MP-2MP
Hard Disk Capacity
64G
Memory
4GB
Network Mode
WiFi, 3G, 4G, 4G
Operating System
Windows
Protection Level
IP67
Rear Camera Pixel
3MP-5MP
Screen Size
≥10.1"
Screen Type
Capacitive Screen
Webcam
Webcam
Resolution
1280X800 / 1900X1200
Optional
Qr Reader / Frif / Fingerprint
Battery
10000mAh
Brightness
800 / 1000 ( CD/M2)
Adapter
5V/3A(DC Port)
CPU Core
Quad-Core
Built-in Bluetooth
Built-in Bluetooth
Built-in Microphone
Built-in Microphone
CPU Type
Intel Cherry Trail Z8350
Transport Package
Paper Box
Trademark
RISENDA
Origin
China
HS Code
8471301000
Production Capacity
10000PCS Monthly

Packaging & Delivery

Package Size
40.00cm * 24.00cm * 5.50cm
Package Gross Weight
1.500kg

Product Description

Product Description
Product Parameters
Spec Standard Option
Physical Spec Dimension 277.48*182.74*21.5
Color Black Could Customize color

Platform Spec

CPU
Intel cherry trail Z8350,
1.44GHZ~1.92GHZ
RAM 4GB 2GB,6GB
ROM 64GB 32GB,128GB
OS Windows 10 Home Pro,IOT

Battery
10000mAh,3.8v lithium- ion battery,Removable,
endurance 8h(1080P Video + LCD
50% Brightness)
Indicator *1

Camera
Front Camera:2MP,
Rear Camera:5MP

2G/3G/4G
LTE FDD: B1/B3/B5/B7/B8/B20; LTE TDD: B38/B40/B41; WCDMA: B1/B5/B8;
GSM: B3/B8
Location U-Blox M7N GPS,Bei Dou,
WIFI WIFI 802.11(a/b/g/n/ac)
2.4G+5.8G
Bluetooth Bluetooth 4.0 (BLE) class1
transmission range:10m
Adapter 5V/3A(DC Port) 5V/3A(CONINVERS)
Display Resolution 800*1280,10.1 IPS LCD,16:10 800cd/m²(1200*1920)
Brightness 450cd/m² 1000cd/m²(800*1280)

Touch panel

GT9110P,5 Points Touch/ Max 10Points Touch
Wet hand touch, glove touch Active/passive capacitor pen

Glass
Corning Gorilla third generation
glass, hardness 7H
AG+AF Coating ,
AR Coating

Key
Power *1
Volume *2,Vol+,Vol-
Self-define key *2,P-Key,F-Key

Voice
Speaker *2, 1.2W/8Ω,
IP67 Water proofing;
Receiver *1,IP67 Water proofing
MIC *2,MIC,IP67 Water proofing

Port
USB1 *1,Type-C USB2.0 Support OTG
USB2 *1,Type-A USB2.0
Ethernet *1,RJ45, 100Mbps
RS232 *1,3pin
DC *1,DC 5V/3A,
HDMI *1,Mini HDMI
Earphone *1,3.5mm Standard earphone
CONINVERS *2, RS232/USB/DC5V/CAN BUS
Pogo Pin *1,,1pin USB+ Charging
SIM *1,Standard Micro SIM Slot
TF *1,Max Support 256GB
Sensors G-Sensor OK

Extension Module
NFC / 13.56MHZ
Support:14443A/14443B/15693
HF RFID / 13.56MHZ
Support:14443A/14443B/15693
UHF RFID / PR9200,Read distance:1.5M-3M:
Read distance 2:5M-8M
ID / Standard 2th Generation

Fingerprint

/
1: ordinary industrial fingerprint
2: Fingerprint authentication by the Ministry of Public Security
3: FBI certified fingerprint
1D Scanner / Zebra SE655
2D Scanner / Zebra SE2707
Reliability IP Protection Level IP67
Drop test 1.2M,Cement floor
Working temperature -20ºC~60ºC
Storage temperature -30ºC~70ºC

Certification
CE OK
RHOS2.0 OK
IEC62133 OK
Air and sea survey report OK
IP67 OK
GMS OK
MSDS Ok
UN38.3 Ok

Accessory
Hand strap / Option
Mounted bracket / Option
Standby Battery / Option
Docking / Option
Type-C Cable / Option
OTG Cable / Option
Detailed Photos
Product application field
1.Storage industry, including: forklift intelligent management,
LG factory data inventory management,
small and medium-sized storage data management,
intelligent storage picking system.
2.Surveying and mapping engineering, including outdoor surveying
and mapping solutions and engineering construction solutions.
3.Service industry, including: golf course intelligent management,
clothing chain brand advertising machine management.
4.Public utilities, including fire control management
of fire brigade and geological disaster early warning system.
5.Transportation industry, including: fleet intelligent management, highway haze penetration vision system,
vehicle detection and diagnosis solutions, and railway maintenance inspection management.
6.Energy industry, including oilfield equipment patrol management and electric power patrol management.
7.Agriculture and forestry industry, including forestry timber transportation management.
8.Manufacturing industry, including: furniture manufacturing enterprise production process management,
machine vision inspection system, CNC machine tool intelligent manufacturing system,
paperless chemical plant solutions
Smart clothing factory electronic signage solution, air conditioning and ventilation equipment management,
copper mining car intelligent management.
9.Communication industry, including communication base station management.
10.Medical industry, including: intelligent management of medical rehabilitation devices,
mobile ultrasonic diagnosis system, remote ECG real-time monitoring system.
11.Logistics industry, including logistics robot mobile solutions.
12.Material quality inspection, including hardness measurement solutions.
