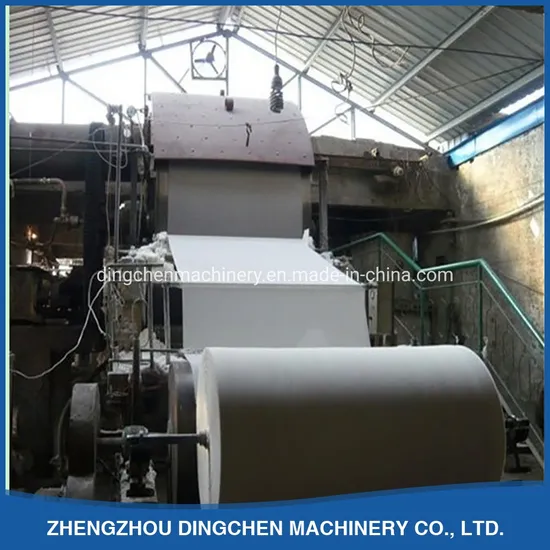

2100mm Fourdrinier Type Tissue Paper Making Machine Capacity 8-10 Tons/Day

Product Description

2100mm Fourdrinier Type Tissue Paper Making Machine Capacity 8-10 Tons/Day

Technical parameter:

1	Output paper	high quality tissue paper
2	Raw material	virgin pulp
3	Output paper weight	13-15g/m2
4	Net paper width	2100mm
5	Capacity	8 -10 tons per day
6	Working speed	200-220 m/min
7	Designing working speed	250 m/min
8	Fourdrinier wire width	2350mm
9	Rail gauge	2900mm
10	Drive way	A/C inverter speed control, sectional drive

Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips

Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
Main structure with spec
1. Fourdrinier wire part
The length of fourdrinier table is 8 meters, the frame is profile steel, coated with stainless steel. The dewatering segment is made of ceramic. Closed type head box is made of stainless steel, with stainless steel single evener roll.
2. Dryer part
1 pc of Ф3000mm×2350mm×2900mm alloy dryer cylinder, 1 pc of Ф600mm×2350mm×2900mm touch roll, coated rubber shore hardness 96ºC±2. With pneumatic pressure device. With 2 sets of pneumatic doctor blades.
3. Winding part
1 set of Ф1100mm×2350mm×2900mm cool winding cylinder.
4. Rewinding and cutting part
1 set of 2100mm automatic rewinding perforating & embossing machine.
1 set of paper cutting machine.

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
