Lq 22
| US$1,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LQ22
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Diesel
Bucket Capacity
0.1m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine Model
Laidong/3te30
Power/Rotation Speed
22.1kw(30HP)@2300rpm
Overall Dimension (L*W*H)
4170mm*1300mm*2280mm
Maximum Travel Speed
2.5km/H
Swing Speed
12rpm
Max. Grade Ability
30 Degree
Machine Weight
2200kg
Axle Base(Track Length on Ground)
1230mm
Track Gauge
1070mm
Max. Digging Height
3700mm
Max. Dumping Height
2290mm
Max. Digging Depth
2450mm
Max. Digging Radius
4370mm
Min .Swing Radius
2020mm
Color
Customized
Transport Package
No Package
Specification
LQ 22
Trademark
Luqing
Origin
Qingzhou, Shang Dong, China
HS Code
84295212
Production Capacity
1000
Product Description

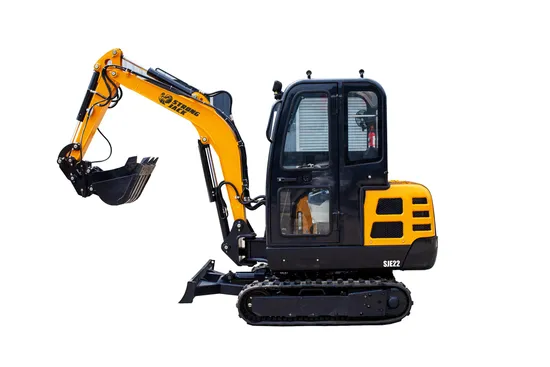

Brief IndructionThe crawler excavator is a compact excavator ,which matched laidong tier III engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system.the machine can changed track from rubber to steel and cabin from open to closed.ensure it can work in different working environments and conditions.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Basic specifications
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | LAIDONG/3TE30 |
| Power /Rotation speed | 22.1kw(30HP)@2300rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 2.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 30° |
| Maximum Bucket digging force | 15.3KN |
| Maximum Arm digging force | 10.5KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 2200kg |
| Boom length | 1850mm |
| Arm length | 1000mm |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Minimum Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2290mm |
| Maximum Digging depth | 2450mm |
| Maximum Vertical digging depth | 2160mm |
| Maximum Digging radius | 4370mm |
| Minimum swing radius | 2020mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 310mm |
| Boom swing angle(Left/Right) | 70°/50° |
Diagrammatic drawing
CONDITIONS:
QUOTATION TERMS: Based on FOB Qingdao or Tianjin port. 30 days validity since issuing date. PACKING DETAILS:
2 pcs in 20GP container. 4 pcs in 40GP container. Bulk cargo or RO-RO Nude DELIVERY TERMS:
Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmed
when order.
PAYMENT TERMS:
By T/T: 30% as deposit and the balance paid after finishing production before shipment ACCESSOORIES:
Tools box, operator's manual and a list of spare parts.
WARRANTY:
Generally, 6 months or 1000 hours since first receiving the goods, whichever first
ORIGINAL: China
OPTIONS: Steel track Closed (full seal)cabin OPTIONAL ATTACHMENTS: Breaker Log grapple Auger
