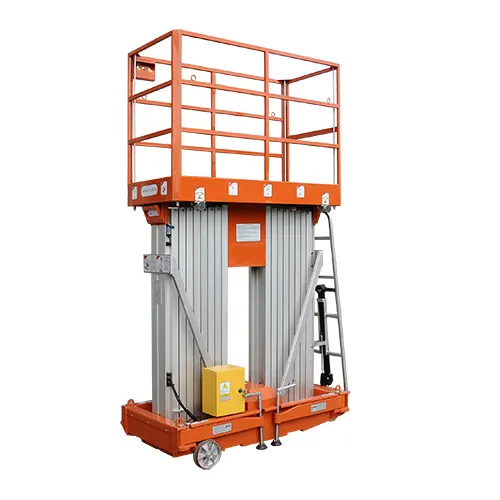

Gtwy Series 16m Battery Drive Double Mast Vertical Boom Lift Platform

Gtwy Series 16m Battery Drive Double Mast Vertical Boom Lift Platform

US$7,850.00
4-8 Pieces
US$7,810.00
9-14 Pieces
US$7,760.00
15+ Pieces

Basic Info.

Model NO.
GTWY16-2000
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Light Level
Moves
Moving
Driven Type
DC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Steel Pallet
Specification
1.73m× 0.70*2.5M
Trademark
Koosen
Origin
China
HS Code
8427909090
Production Capacity
10000 Pieces/Year

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 500.00cm
Package Gross Weight
2500.000kg

Product Description

Product Description
AWP16-2000/ AWP14-2000/ AWP13-2000/ AWP12-2000/ AWP11-2000/ AWP9-2000/ AWP8-2000Main spec.
Working height:16.00m/14.00m/13.00m/12.00m/11.00m/9.00m/8.00m
S.W.L:156kg/200kg/250kg

Important features
self-leveling outriggers with sensor system, LED display, safe and reliable
Tilt back frame to reduce the machine height and easy to transport
Trunk loading device, convenient for loading alone
AC/DC Power system optional
Product Parameters

Size
Model GTWY16-2000 GTWY14-2000 GTWY13-2000 GTWY12-2000 GTWY11-2000 GTWY9-2000 GTWY8-2000
Max.working heiget 18.00m 16.20m 15.60m 14.20m 12.60m 11.30m 9.80m
Platform Floor Height 16.00m 14.20m 13.60m 12.20m 10.60m 9.30m 7.80m
Overall Length(Stowed) 1.97m 1.97m 1.97m 1.97m 1.88m 1.88m 1.88m
Overall Width 0.81m 0.90m 0.90m 0.90m 0.81m 0.81m 0.81m
Overall Height(Stowed) 2.68m 2.74m 2.50m 2.30m 1.99m 1.99m 1.99m
Outrigger Footprint(L/W) 3.2/2.8m 3.2/2.4m 2.87/2.3m 2.87/2.3m 2.45/1.75m 2.45/1.75m 2.45/1.75m
Platform Size(Length/Wide) 1.73m×0.70m 1.73m×0.70m 1.73m×0.70m 1.73m×0.70m 1.73m×0.70m 1.73m×0.70m 1.73m×0.70m
Ground Clearance 0.05m 0.05m 0.05m 0.05m 0.05m 0.05m 0.05m
Performance
Model GTWY16-2000 GTWY14-2000 GTWY13-2000 GTWY12-2000 GTWY11-2000 GTWY9-2000 GTWY8-2000
S.W.L 150kg 200kg 200kg 250kg 250kg 250kg 250kg
Max. Occupants 1 1 1 2 2 2 2
Up/Down Speed 72/53sec 66/47sec 60/41sec 54/35sec 48/29sec 42/23sec 36/17sec
Tyres(Back Wheels) 8in 8in 8in 8in 8in 8in 8in
Tyres(Front Wheels) 5in 5in 5in 5in 5in 5in 5in
Power
Model GTWY16-2000 GTWY14-2000 GTWY13-2000 GTWY12-2000 GTWY11-2000 GTWY9-2000 GTWY8-2000
Lifting Motor(AC) 110-230VAC/1.5kW 110-230VAC/1.5kW 110-230VAC/1.5kW 110-230VAC/1.5kW 110-230VAC/1.5kW 110-230VAC/1.5kW 110-230VAC/1.5kW
Lifting Motor(DC) 12VDC/1.5kW 12VDC/1.5kW 12VDC/1.5kW 12VDC/1.5kW 12VDC/1.5kW 12VDC/1.5kW 12VDC/1.5kW
Batteries 12V/85Ah 12V/85Ah 12V/85Ah 12V/85Ah 12V/85Ah 12V/85Ah 12V/85Ah
Integrated Charger 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A 12V/15A
Weight
Model GTWY16-2000 GTWY14-2000 GTWY13-2000 GTWY12-2000 GTWY11-2000 GTWY9-2000 GTWY8-2000
Weight(AC) 980kg 850kg 815kg 780kg 675kg 630kg 585kg
Weight(DC) 1040kg 872kg 837kg 802kg 697kg 652kg 607kg

Recommand

Exhibition
Packaging & Shipping
FAQ
1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths.
5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L.
6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
7.Q:Are you factory?
Yes,we have our own factory.
8: Can I visit your company?
Of course at anytime.
9, Do you support customization?
Yes.We not only provide standard products,but also support customized products.
