Sunrain Manufacturer Top Selling R32 DC Inverter 21kw 28kw 35kw Smart Heat Pump Swimming Pool Water Heater

Product Description

Product Description

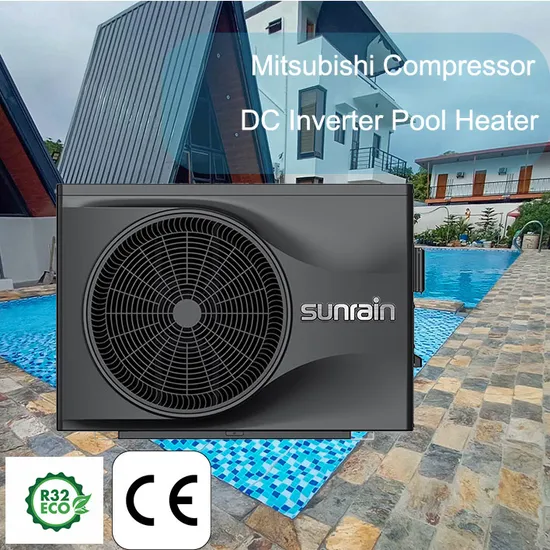

Sunrain BYE-TE series swimming pool heat pump with eco friendly R32 refrigerant, is ideal for residential and commercial pool heating and cooling, causing no depletion of ozone layer. With ABS casing, the pool heat pump has an excellent anti-corrossion quality and is very durable. IOT tech enables you to control the heat pumps any time and anyhere via your mobilephone. In addition, high end Mitsubishi compressor is used for long term and stable performance of the air to water heat pump water heater. No matter how big or how small your pool is, we have a wide range of heating capacity for your choice, from 7kw to 35 kw.
3 Different Colors For Choice Grey White Black
Product Parameters

R32 DC Inverter Pool Heat Pump		BYE-021TE1	BYE-028TE1	BYE-028TE3	BYE-035TE1	BYE-035TE3
Operating range	ºC	-15°C~43°C	-15°C~43°C	-15°C~43°C	-15°C~43°C	-15°C~43°C
Air 26ºC Water 26ºC	capacity(KW)	21.01~5.52	28.23~7.56	28.42~7.58	35~8.94	35.1~8.97
	power input(KW)	3.03~0.36	4.06~0.48	4.08~0.48	5.15~0.56	5.16~0.56
	COP	15.36~6.94	15.77~6.95	15.79~6.96	15.98~6.97	16.01~6.97
Air 15ºC Water 26ºC	capacity(KW)	15.74~3.59	20.68~4.77	20.75~4.79	25.5~6.4	25.5~6.4
	power input(KW)	3.18~0.47	4.17~0.63	4.18~0.63	5.2~0.84	5.2~0.84
	COP	7.57~4.95	7.59~4.96	7.59~4.97	7.61~4.97	7.61~4.97
Air 35ºC Water 27ºC	capacity(KW)	11.07~2.86	14.52~3.64	14.58~3.66	19.3~4.9	19.3~4.9
	power input(KW)	3.11~0.44	4.04~0.55	4.04~0.55	5.08~0.73	5.08~0.73
	EER	6.57~3.56	6.61~3.59	6.63~3.61	6.7~3.8	6.7~3.8
Power supply	220~240V/50(60)Hz			380~415V/50(60)Hz	220~240V/50(60)Hz	380~415V/50(60)Hz
Max power input	KW	4.985	5.962	5.962	6.123	6.21
Rated power	KW	3.18	4.17	4.18	4.4	4.36
Rated current	A	14.45	18.95	7.46	20	11.3
Water flow	m³/h	6.5	9	9	12	12
Min pressure/max pressure	Mpa	0.2/4.4	0.2/4.4	0.2/4.4	0.2/4.4	0.2/4.4
Water proof level		IPX4	IPX4	IPX4	IPX4	IPX4
Net Dimensions (mm)(L x W x H	mm	896*389*641	1084*399*737	1084*399*737	1084*399*737	1084*399*737
Package Dimensions (mm)(L x W x H	mm	990*435*750	1146*460*869	1146*460*869	1146*460*869	1146*460*869
Net Weight(kg	kg	58	86	86	98	98
Gross Weight(kg	kg	69	97	97	110	110

Packaging & Shipping
Carton Box Carton Box With Pallet
Company Profile
Jiangsu Sunrain is a listed company engaged in renewable energy products for more than 26 years. We have 6 productions bases with annual turnover of more than 6 billion. Sunrain can supply a full range of air source heat pumps and heat pump components, like air to water heat pump water heaters, all in one heat pumps, split heat pump water heaters system, swimming pool heat pumps, commercial heat pump and monoblock heat pump for domest heating. It is more safe and flexible to do business with Sunrain.


Big&Modernized Workshop Self Produced Components
High Degree Of Automation Rich Exhibition Experience Our Service
a. 2 years warranty for the whole heat pump
b. Free spare parts provided
c. OEM ODM project solution service available
