Economical Plastic Scrap Shredder with Single Shaft for Recycling Woven Bag

Product Description

Economical Plastic Scrap Shredder With Single Shaft For Recycling Woven Bag
Single shaft shredder brief introduction:
The DGS General Purpose Single Shaft Shredder has a 457mm diameter profiled rotor made of solid steel, operating ar a speed of 74rpm. The concave ground, aggressive 4-way totating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which gurantees a high flow rate, low power consumption and maximum output of shredded material.
The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by loaded-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.
Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.
Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.
A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

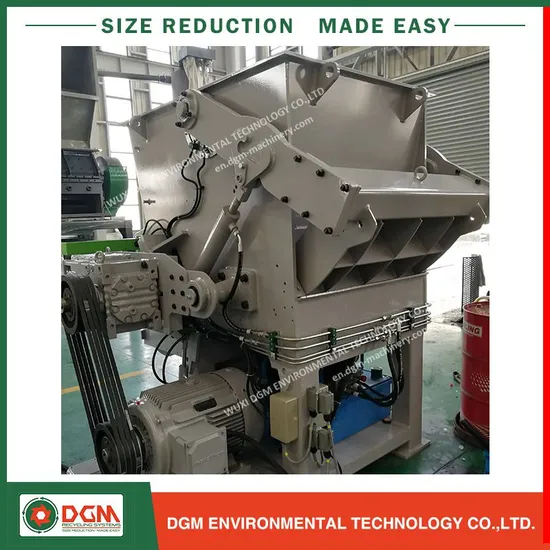

Pictures of Single shaft shredder:
Specification of single shaft shredder:

Item		Unit	DGS850	DGS1200	DGS1500	DGS2000
Cutting chamber		mm	840*1570	1120*1570	1400*1570	1960*1570
Rotor Diameter		mm	457	457	457	457
Rotor Speed		rpm	74	74	74	74
Motor Power		kw	37/45/55	55	75	74
Rotor Knives		pcs	60	81	102	144
Stator Knives		pcs	2*3	2*4	2*5	2*7
Hydraulic Ram Power		kw	3.75	5.6	5.6	5.6
Screen Size		mm	40-100	40-100	40-100	40-100
Shredding Chamber Size		mm	800*730	800*1000	800*1290	800*1860
Dimensions	A	mm	2300	2300	2300	2300
	B	mm	1650	1650	1650	1650
	C	mm	540	540	540	540
	D	mm	660	660	660	660
	E	mm	2250	2250	2250	2250
	F	mm	350	350	350	350
	G	mm	2000	2280	2600	3720

Layout for single shaft shredder:

Key features of single shaft shredder

Alternertive options

- Large diameter flat rotor - Machined pocket knife holders - Optional hard facing - Concave ground square knives - Robust ram construction - Heavy duty guide bearings - Universal couplings - Low speed, high torque geared drive - Powerful hydraulic swing type ram - Reduced footprint(compared to horizontal pusher designs) - Bolt in drive shafts - Multiple rotor designs - Two speed hyraulic system - Oil cooling on ram and gearbox - Ram comb plate - Amp meter control

- Hydraulic screen cradle - Gearbox with shrink disc - Rotor cooling - Pipe spacer - Touch screen PLC - Hopper mounted viewing mirror - Increased motor drive - Hydaulic drive

Cetificates
Packing and Shipping
1. Several layers of plastic wrapping film and cardboard to protect single shaft shredder from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the single shaft shredder to be safely shipped to customers appointed location.
5. If you have any other request for the packaging or loading, we will do our best to meet your demands.
Company Introduction
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling. Utilizing core German design and technology, we have expanded our scope of application to include plastics,timber,rubber,biomass and many other industries where size reduction and materials processing are critical. Our dedication to product development and attention to individual customer needs means we are well equipped to offerr successful business solutions and tailor-made processing plants to our customers.
FAQ
Q1: Are you a trading company or a factory ?
DGM is a factory with 10 years experience in tire and plastic machinery manufacturing, and 20 years experience in technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction, washing line and tire recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: What is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
DGM---Qualified supplier to offer you high quality single shaft shredder.
