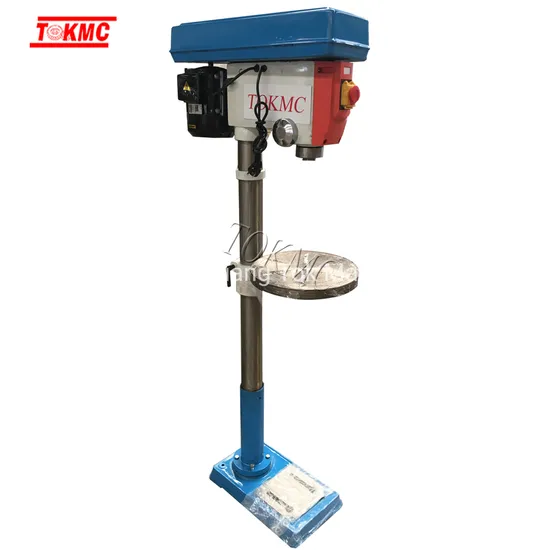

Vertical Round Column Pillar Drilling Machine 19mm
| US$300.00-500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZT-19GF
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Drilling Machine
Suitable Height
Drilling Machine Motor
550W
Overall Height
1625mm
Spindle Speed
250- 3200 Rpm
Spindle Travel
100mm
Table Size
350mm
Spindle Taper
Mt2
Column Dia
80mm
Spindle Driven
Belt
Transport Package
800X560X340mm
Specification
100kgs
Trademark
tokmc
Origin
China
HS Code
84592900
Production Capacity
100 Sets Per Months
Product Description
vertical round column pillar drilling machine 19mm| Item | ZT-16E | ZT16J | ZT-19GF | ZT-32GF |
| Max.drilling dia.mm | 16 | 16 | 19 | 32 |
| Chuck size mm | 16 | 16 | 16 | 16 |
| Table travel mm | 365 | 365 | 830 | 500 |
| Table size mm | φ290 | φ312 | φ350 | 470×420 |
| Spindle travel mm | 80 | 85 | 100 | 125 |
| Distance spindle axis to column | 182 | 182 | 199 | 300 |
| Spindle taper | MT2 | MT2 | MT2 | MT4 |
| Column diameter mm | 72 | 72 | 80 | 92 |
| Spindle speeds series r.p.m | 300-3100 | 300-3100 | 250-3200 | 160-2060 |
| Spindle steps | 12 | 12 | 12 | 9 |
| Motor W | 370 | 370 | 550 | 750 |
| Overall height mm | 965 | 992 | 1625 | 1730 |
| N.W./G.W. KG | 53/57 | 65/69 | 100/120 | 173/210 |
| Packing case dimensions mm | 785×460×280 | 785×460×280 | 800×560×340 1450×150×150 | 1430×430×570 |
