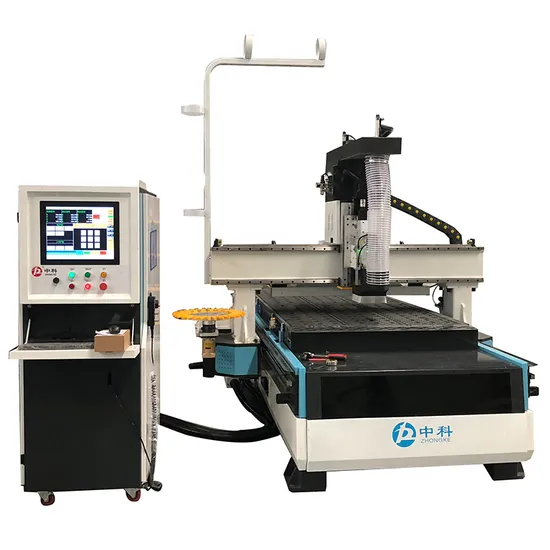

Woodworking Furniture Used Atc CNC Router Engraving Machine with Nesting Software

Product Description

Product Description
1. Carousel automatic tool changer for quick tool management.
2. CNC boring head with vertical and horizontal drilling heads , so itt can meet your various processing needs of drilling, punching holes, and woodcutting.
3. Can be optional equipment for loading,feeding, and unloading working; Detailed Photos
Thick steel welded bed structure with thick gantry bar
Taiwan HIWIN square guide rails, helical rack transmission and feeding wheels, etc
Auto oil lubricating s ystem, auto pushing device
China HQD brand 9KW air cooling spindle, can be optional vertical 5+4 serie boring unit
Reducer used with servo motor, can be optional Nidec, planet and SHIMPO, etc brands
Auto oil lubricating system
7.5KW water vacuum pump
16 cutters carousel ATC storage
Servo motor and driver
5.5KW dust collector with two bags
Can be optional auto unloading table
Auto loading table
Product Parameters

X,Y,Z Working Area	1300*2800*200mm
Spindle	China HQD brand 9KW air cooling spindle , can be optional 5+4 serie boring unit
Inverter	11kw Fuling inverter
Tool magazine	Carrousel type auto tool changer Tool holder with collet ISO30,ER32 collet:φ4,φ6,1/8,1/2
Control system	Taiwan Syntec control system or Shanghai WEIHONG control system
Driving system	Driving system Taiwan Syntec 1000W servo motor and drivers, total 5 sets, or can be optional Shanghai WEIHONG servo motor and driver
Reducer	Japan Shimpo reducer
Machine structure	Heavy duty welded steel frame
Work table	Full-page vacuum working table
Linear guide	Taiwan Linear guide
Transmission	X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw
Lubrication system	1.5L Auto lubrication system
Tool calibration	Auto tool sensor
Limited Switch	Japan Omron Limited Switch
Cables	Germany Igus cables with CE,UL certificate
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
Working accuracy	±0.03mm
Working voltage	380V 3PH 50HZ/ 60HZ

Related products


Sample photos
FAQ
1.Does your company provide teaching and training?
video training, if you need engineer go to your factory for trainning, then we can arrange engineer go to your factory, but you need pay for the flight cost, food cost and hotel cost, etc, also every day USD 150 for technician.
2. How much will cost from China to client location port or door shipping cost ?
90% sea port can be offer Shipping cost at sight after got sea port name and your factory address.
3.Does your engineer speak English? Which countries have you been to? Can you provide on-site installation and training?
20 countries on site service recording, 10 Years Experience for CAM and CNC control system
4.What software do you commonly use? Or adapt to my software (main CAD or CAM software commonly used abroad)?
99% CAM software supported . 100% G code is no problem in our machine
Company Profile
Jinan Zhongke CNC Equipment Co., Ltd. is a company mainly engaged in carving machines; Woodworking carving machine; Furniture carving machine; Advertising engraving machine; Laser engraving machine; Stone carving machines, glass carving machines, metal carving machines; A production-oriented company that specializes in the research, development, production, and sales of engraving and cutting equipment. Our products draw on advanced foreign technology and rely on years of market accumulation to establish a stable technical service team for computers, CNC machine tools, and industrial automation products. We are a technical service company that integrates the research, development, assembly, production, and sales of CNC machinery, optoelectronic products, and other electromechanical equipment.
Our Advantages
We are professional manufacture that have professional engineer team, and sales team, etc
