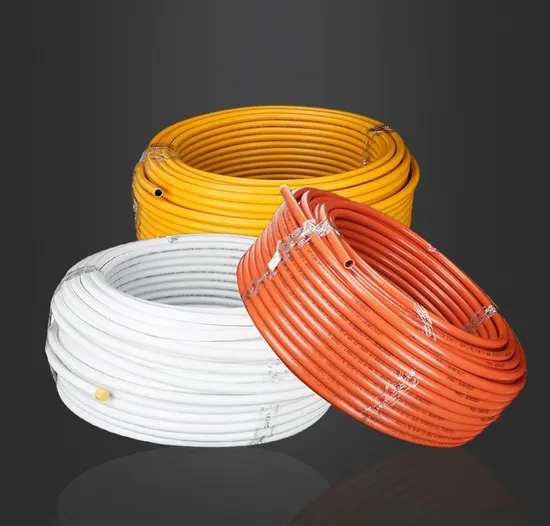

Pex-Al-Pex Pipe Composite Aluminium Plastic Multilayer Pipe for Nature Gas Plastic Tube

Product Description

16mm pex/al/pex pipe Product Description

PEX-al-PEX piping is a coextruded crosslinked polyethylene composite pressure pipe with a welded aluminum tube reinforcement between the inner and outer layers. The inner and outer crosslinked polyethylene layers are bonded to the aluminum tube by a melt adhesive
Product Specification
Size Chart

Product	Size(mm)	OD(mm)	Tolerance(mm)	OD(mm)	Tolerance(mm)
Butt-Weld PEX-AL-PEX	16*2.0	16	+0.3	2.0	+0.2
	20*2.0	20	+0.3	2.0	+0.2
	26*3.0	26	+0.3	3.0	+0.2
Overlap-Weld PEX-AL-PEX	16*2.0	16	+0.3	2.0	+0.2
	20*2.0	20	+0.3	2.0	+0.2
	26*3.0	26	+0.3	3.0	+0.2
Other size as client required

Product Character
Product Advantage

Easy to bend without rebound
It has the properties of metal pipes and is easy to bend without rebound.

Oxygen Barrier and impermeability
Aluminum layer prevents oxygen from permeating into the pipe

Low dilatation coefficient
Lower thermal dilatation coefficient,improve the dimensional stability of the pipe. The thermal dilatation coefficient is 2.5*10-5m/(m*ºC),which is the 1/6 of PEX pipe.

Product Application
Product Application

Hot- and cold-water plumbing system
Radiant heating and cooling systems (floors, walls, ceilings)
Outdoor snow and ice melting system
Hydraulic piping and distribution (radiators, fan coils, etc.)
Packaging & Shipping
Packing and Delivery
Company Profile
Company Profile
Hebei Ritai Original Pipe Co., Ltd -the core subsidiary company of RITAI GROUP- was founded in 2001. It is one of the plastic pipe manufacturers that first recognized the professionalization and scale production. RITAI GROUP is specialized in researching and developing, production of plastic pipes. We can provide water supply and heating systems for residential and commercial buildings and municipal projects. The company is located in the beautiful seaside city - Qinhuangdao. We have nearly 100 modern production lines. All our products are made of imported high-quality raw material. The main products include pipes and fittings for floor heating systems, water supply and drainage systems, municipal pipelines, etc.
RITAI GROUP has an advanced and perfect quality control system. It has been passed the certification of ISO 9001 (international quality management system) and ISO 14001(environment management system), and OHSAS18001(healthy management system). All the products should be passed the three-level inspection: raw material inspection, production online inspection, and finished products inspection. Products have been tested and approved by the National Laboratory. To promote industry-standard development, we actively initiated and participated in the compilation of national and local technical standards and construction specifications; simultaneously. The company always stands at the top of the plastic pipe industry through continuous research and improved production process. The company has the National Class A Construction Qualification and a professional and high-quality construction team.

Relying on advanced pipeline technology, scientific enterprise management, and excellent quality service, our business network has developed rapidly, products have been all over the country and exported overseas. All sectors of society recognize our effects. We have established long-term strategic partnerships with China Railway Construction, China State Construction, Vanke, Sino-Ocean, and other large enterprises. The company's cumulative sales of pipes have exceeded 400 million meters. And products were applied to more than 8000 projects.

FAQ
FAQ
Q1. Are you trading company or manufacturer?
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Do you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment?
A:Western Union, T/T 30% in advanced, balance before shipment.
Q5: For pipe fittings, what do you do mainly?
A: For fittings, coupling(socket), elbow,tee,reducer,union, valve,cap,some electrofusion fittings and compression fittings.
Q6: Can i have my own logo on the product?
A: Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q7: Can i request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
