OEM Custom Hot Sale Stainless Steel Hopper Machine Screw Auger Feeder

Product Description

Product Description OEM Custom Hot Sale Stainless Steel Hopper Machine Screw Auger Feeder

Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Restaurant...
Material	SUS304/SUS316/SUS316L/ Carbon Steel
Name	Auger feeding machine
Warranty	1 Year
Core Components	Motor+Gearbox(Optional)
Application	Powder, Food, corn
Feature	High Efficiency
Condition	New
Material Feature	Customer Request
Voltage	220V/380V/415V
Dimension(L*W*H)	Customer Request
Video outgoing-inspection	Provided
Color:	Customer Request
Usage	Inclined Conveyor
Frame Material	SUS304/SUS316/SUS316L/ Carbon Steel

Product Introduction:

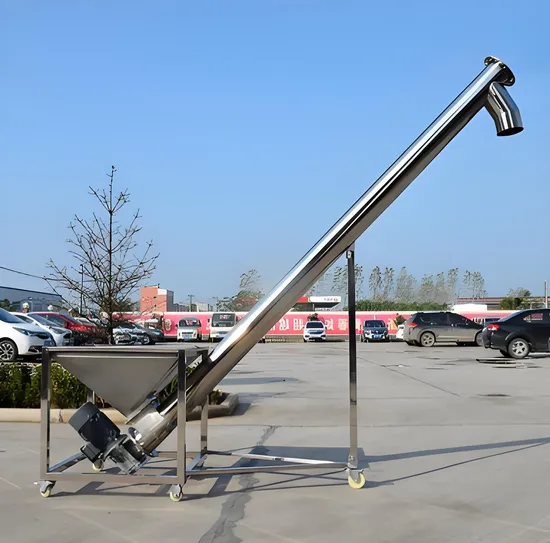

The Auger Conveyor is suitable for transferring a range of powders or granule from ground level to packaging or filling machines or various applications, the product-feed of the conveyor is controlled to retain the product level in the product-hopper. Screw drive feeding machine form a complete set of auxiliary machinery required for plastic processing machinery, is indispensable in the process of blow molding machines feeding auxiliary equipment Powder or granular plastic raw materials can be automatic transfer directly to the inside the hopper, adjust the mixing machine is special equipment contact materials are stainless steel, in conveying process of raw material is not polluted, not into any foreign body, can make the production process to realize the automatic closed.
Optional select:
Auger feeder structure consists of: motor, reducer, sprocket, chain, coupling, main shaft, spiral blade, hanging bearing, housing, etc.
The connection method is divided into: (direct connection type, chain type).
The shape is divided into: (tube type, U type).
Conveying method: (with shaft, without shaft).
The specifications of this product are (tube type, U type) (single shaft, no shaft), shell blade material: carbon steel, stainless steel. According to the particle size, conveying volume and conveying distance of the conveyed material, reasonable selection and design can be made to achieve no jamming, no arching, and smooth discharge. Parameters and drawings are provided free of charge.

Auger feeing machine is widely used in building materials, chemical industry, coal, grain and oil, feed and other industries. It is suitable for horizontal or inclined conveying of powdery, granular and small materials, such as grain, diesel, coal, flour,cement, fertilizer, etc. It is not allowed to transport perishable, sticky and caking materials.
The operating ambient temperature is - 20 ~ 50 ºC, and the temperature of transported materials is ≤ 200 ºC.
1. Equipped with vibration motor+requency changer, make the material into the spiral automatically and flexible output.
2. Custom output height.
3. Can equipped with powder filling machine, mixing machine.
4. Hopper is adjustable and vibrational which make material to be flowing easily. (Customized size)
5. Hopper is separated from twisting shaft. Structure is reasonable and easy to loading and unloading.
6. Characteristic dustproof, bearing won't be polluted by the dust and powder.
7. Smooth surface makes easy to clean the scrapped material.
Application:
Optional selection detail:
