10in. Od 250mm Stainless Steel Dispersing Blade with Anti-Corrosion Coating

Product Description

10in. OD 250mm stainless steel dispersing blade with anti-corrosion coating
what is a Dispersion disc / cowles disc introduction
The Universal Dispersion Disc, or also known as COWLES Disc in reference to its inventor, is designed in order to create large dispersions. It will create a flow stream in the container that contains the liquid to be dispersed, as can be seen in the lateral figure↘. All our DDUs are made of AISI-304 or AISI-316L stainless steel with electro-polished finish.
what is the anti-corrosion coating used for the dispersing disc?
The dispersing discs in the picture bleow is stainless steel 304 dispersing discs with tungsten carbide materials as coating. Tungsten carbide is a king of alloy with excellent corrosion resistance and high hardness.
With the Tungsten carbide coating out side the dispersing disc, users can use the disc to high corrosive liquid with bigger sized particles.
The left dispersing mixer / blade is made by stainless steel, without coating outside the disc surface.
The dispersing disc at right side seems much more dark in color, it is stainlee steel disc with tungsten carbide coating.

stainless steel dispersing disc without coating

dispersing disc with tungsten carbide coating

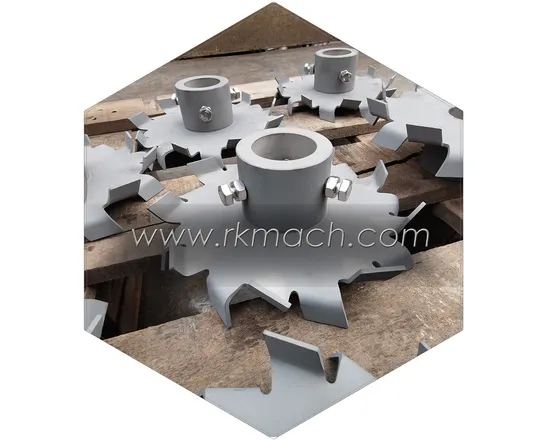

In the above picture of our dispersing mixer, you can see both of them comes with a shaft bushing. this bushing is made to order. bore size and keyway are also customizable.
Dispersing disc outer diameter and bore size options

Model	φdisc	φshaft	φstud	Stud hold Qty	PCD	WT	Material
DDU-50	50	8	/	/	/	/	SS304 / 316L / SS304 with coating
DDU-60	60	8	/	/	/	/	SS304 / 316L / SS304 with coating
DDU-80	80	8	/	/	/	/	SS304 / 316L / SS304 with coating
DDU-100	100	8	/	/	/	/	SS304 / 316L / SS304 with coating
DDU-120	120	8	8	3	50	3	SS304 / 316L / SS304 with coating
DDU-150	150	8	8	3	60	3	SS304 / 316L / SS304 with coating
DDU-180	180	8	8	3	80	3	SS304 / 316L / SS304 with coating
DDU-200	200	30	8	4	80	3	SS304 / 316L / SS304 with coating
DDU-230	230	30	8	4	80	3	SS304 / 316L / SS304 with coating
DDU-250	250	30	8	4	80	3	SS304 / 316L / SS304 with coating
DDU-280	280	30	8	4	80	3	SS304 / 316L / SS304 with coating
DDU-300	300	35	10	4	100	3	SS304 / 316L / SS304 with coating
DDU-330	330	35	10	4	100	3	SS304 / 316L / SS304 with coating
DDU-350	350	35	10	4	100	3	SS304 / 316L / SS304 with coating
DDU-400	400	40	12	4	120	4	SS304 / 316L / SS304 with coating
DDU-500	500	40	12	6	120	4	SS304 / 316L / SS304 with coating
DDU-605	605	120	16	6	160	4	SS304/316L

How to choose a suitable dispersing disc?
For proper operation, the DDU disc need to work in a suitable container, that is:
for a ØD disc the ideal tank diameter is Ø2D ~ Ø3D
and the distance from the DDU disk to the bottom of the tank 1D ~ 1,5D
If you need our help in selecting the dispersing disc, please feel free to contact us
you may also need stainless steel tanks, stainless steel shaft and mixing motors etc, you can also contact our on line team to get a quote.
