5.5 Kw AC Oil Free Scroll Air Part of Compressor

Product Description

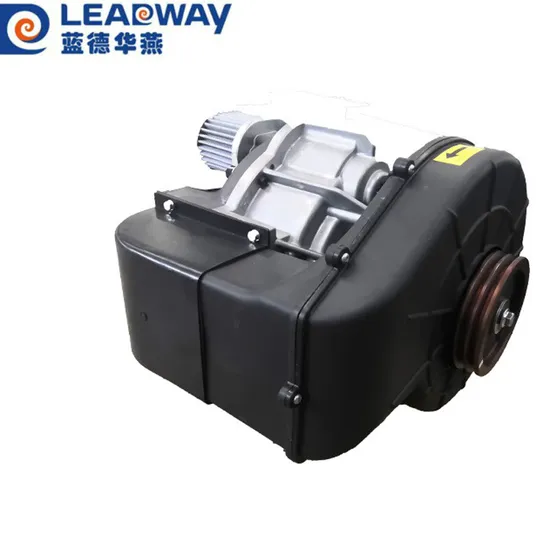

5.5kw oil free scroll compressor air end

Rated/maximum work pressure	0.7/0.8MPa
Exhaust capacity	600L/min
Drive mode	belt drive
Exhaust temperature	160ºC
Rated shaft power	5.5KW
Start axis speed	3200r/min
weight	28KG
Size	430x410x353mm

the feature of the scroll air compressor
Silent: Low noise & Low Vibration: Silent operation and low vibration assure comfortable and quiet work space.
Clean: Clean Air 100% Oil-Free:Air exhausted from oil-type compressors contain oil, moisture and dust. Oil-free type compressors can supply clean air.
Safe: Safe Backup Function:Even if one air end fails, another air end automatically replaces it by jump control. Unmanned operation at night has become easy.
Easy: Easy to use Controls:High quality microcomputer is mounted. Maintenance monitor digitally displays operating conditions, warnings and cautions. Automatic power failures and reset function can be dealt with easily.
Smart: Compact and Smart design:There are no extruding handles on the back of machine. Its simple design and reduced installation space required allows it to fit well in any office.
Environment: Energy Saving
Multi-stage Control: Plural air ends are built into one compressor. Multi-stage control system activates in accordance with air consumption and selects optimum number of air ends required to achieve highest energy saving operation available.
Energy-saving Control System: When air consumption greatly fluctuates, selection of compressor control system makes a big difference on the energy consumption of your compressor
Compression principle of oil-free scroll compressors
As the orbiting scroll orbits from the No.1 position to the No.4 position, air is forced through the scroll components and compressed through the outlet in the centre.
Advanced manufacturing equipments
