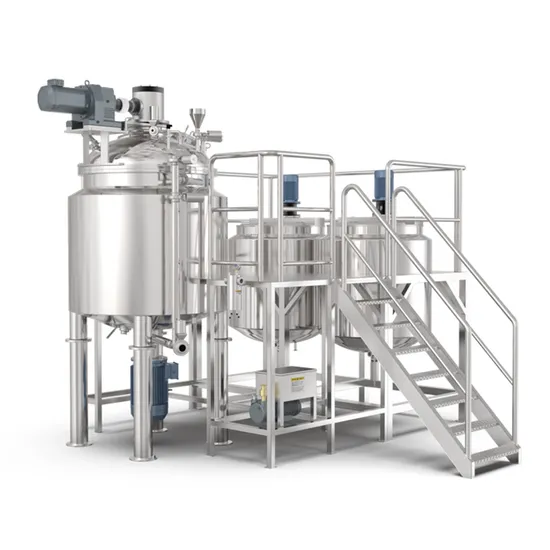

Stainless Steel Liquid Vacuum Mixer Shampoo Liquid Soap Emulsifying Mixer 1000kg

Product Description

Product Description Our circulation type vacuum homogenizing mixer is specially designed for the large volume of material mixing use. It is mainly divided by two parts, SPA series and SPC series. The SPA series is more suitable for the engineering installation.
The equipment is installed with a high shear homogenizer with an internal or external circulation system, featuring bottom-mounted. The mixing tank comes with a two-way stirring paddle with a wall scraper.

Features:1)High sanitary level: the material can be food grade SS304 /SS316L and it is full-welded.
2)Multi-ports available: material inlet port, LED port, air filter port, observation hole, vacuum port, breathing port, etc.
3)Multi-function: it can be used to make shampoo, lotion, cream, gel, perfume, etc.
4)Convenient operation: Button control, and PLC control are optional
5)Customization service: the heating/cooling jacket is optional based on the need

Design Volume(L)	Max Work Volume(L)	Min Work Volume(L)
650	520	110
1300	1000	200
2000	1500	350
3000	2500	500
4000	3000	650
5000	4000	800

Remark:
The homogenizing mixer is featured by high customization based on the material situation, the listed price is for reference only. For any need, please kindly send us an enquiry for specific discussion.
1. Working principle:
The mixing blades or stirring paddles of liquid mixer machine rotate along a fixed direction under the driving of the power unit. The materials are pushed to do axial rotation and radial rotation during the rotation of the stirring paddles.Stirring blades or blending paddles of the high shear liquid mixer machine has very high linear velocity, which will make materials dispersed evenly in short time.

2. Multiple blending structures:
Liquid Mixer has several types of blending structures. Customers can choose as per special demand.
3. Emulsifying and dispersing structure:We can install a high speed emulsifying motor to push the materials reach a better dispersion. 4. Liquid spray system, Heating and cooling jacket, Surface treatment and steel grade:
Liquid spraying device can be installed as per requirement.
Heating and cooling jacket is available according to customer's temperature.
Liquid mixer is made of food grade stainless steel with mirror polish, matte shinning polish, brushed finish to meet GPM standard. Related Products Application
Company Profile
What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
