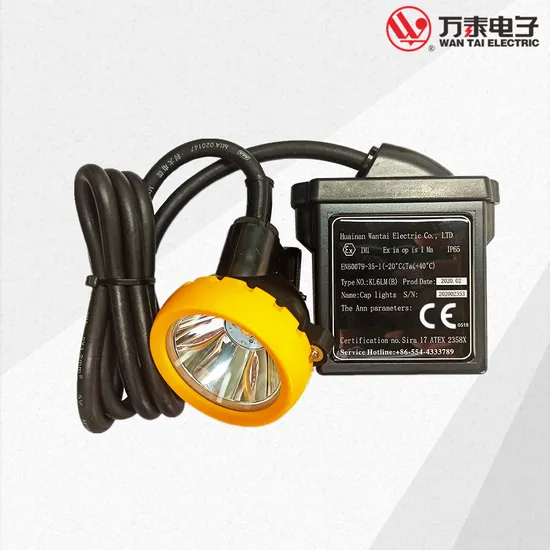

Miner′ S Lamp 18000lm Atex Coal Mining Explosion Proof Miner Cap Lamp LED Miner′ S Lamp

Miner′ S Lamp 18000lm Atex Coal Mining Explosion Proof Miner Cap Lamp LED Miner′ S Lamp

US$25.00-55.00 300 Pc (MOQ)

Basic Info.

Model NO.
KL6LM(B)
Feature
Waterproof, Explosion Proof
Lighting Time (Hours)
>12
LED Chips Brand
CREE
Material
ABS
Battery Type
Lithium Ion
Certification
CE, RoHS, ISO, CCC, Atex
Warranty
1 Year
Transport Package
Wooden or Paper Case
Specification
IP65
Trademark
Wantai
Origin
Huainan City Anhui Province
Production Capacity
50000 Pieces/Year

Product Description

18000lm Atex Coal Mining Explosion Proof Miner Cap Lamp led mining light
1. Application
KL6LM(B) Intrinsically Safe Type Miner's Lamp, this product is a portable lighting tool, mainly suitable for underground lighting, but also for tunnels, high-altitude and field operations.
2. Features
Using LED as the main light source, the lamp does not need to replace the light source during the life cycle of the mine lamp. Meanwhile, because of the good heat dissipation performance of metal lamp cup, the light source working temperature is low, long life, safe and reliable.
A new type of charge and discharge protection board can be used to prevent overcharging and overdischarge and effectively improve battery life. When short-circuit occurs, the power supply can be cut off quickly, and the work can be resumed after troubleshooting to ensure safe use.
3. Technical parameters

Parameter items

ATEX Intrinsically safe cap lamp

Normal Intrinsically safe cap lamp

Model

KL2LM(B),KL4LM(B),KL6LM(B)

KL2.5LM(A),KL4LM(A),KL5LM(A),KL6LM(A)

Life time

2 /years

1.5 /years

Explosion-proof mark

Ex I M1 Ex ia op is I Ma

Ex ia I Ma

Encapsulation

Internationally
certified, Encapsulated epoxy resin adhesive

Encapsulated Common Silica Gel

Temperature resistance of adhesive

≤200ºC

≤150ºC

Battery

Internationally certified lithium battery

Common lithium battery


Rated capacity
KL2LM(B) 2.5Ah KL2.5LM(B) 2.5Ah
KL4LM(B) 4.5Ah KL4LM(B) 4Ah
KL5LM(B) 5Ah
KL6LM(B) 6.6Ah KL6LM(B) 6Ah

Rated Voltage
3.7V 3.7V

Main light source current

320mA±15mA(LED/Imported LED)
KL2.5LM(B) 140mA ±15mA
KL(4,5,6)LM(B) 180mA ±15mA

Main light source illumination

≥18000LX

≥5000LX( /Light Cup)

Auxiliary light source current

110mA±15mA

90mA ±15mA

Charging voltage
5V-7V (/Continuous current≤ 900mA)
6V-8V

Protection grade

IP65

IP65


Lighting time
KL2LM(B) ≥15h KL2.5LM(A) ≥15h
KL4LM(B) ≥20h KL4LM(A) ≥20h
KL5LM(A) ≥25h
KL6LM(B) ≥30h KL6LM(A) ≥30h

Charging time

≤8h

≤8h

Battery life

≥600 times(20h/10h)

≥500 times(20h/10h)

Dimension

94×35×105mm

68×30×116mm

Full light weight

0.62 kg

0.55 kg
