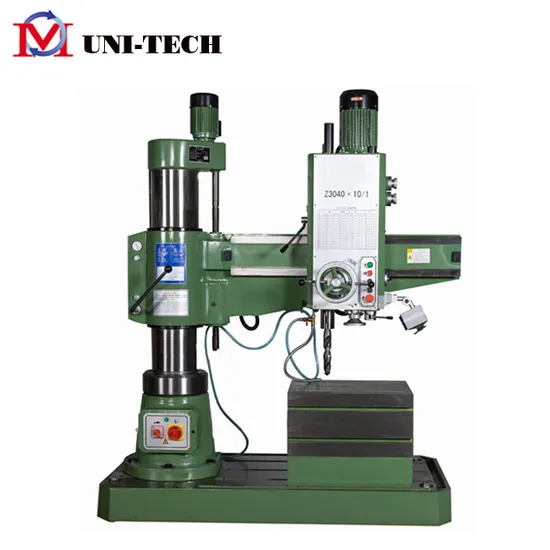

(Z3040X8/1) Hydraulic Radial Drilling Machine
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040X8/1
Controlling Mode
Artificial
Number of Shaft
No CNC
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Z3040X8/1
China Factory Supplier Vertical Radial Drilling Ma
Max.Drilling Capacity
40mm
Diameter of Column
240mm
Distance Spindle Axis to Column Generati
320-820mm
Spindle Taper
Mt4
Spindle Travel
240mm
Spindle Speeds Range
75-1220r/Min
Dimension of Worktable
400X400X350mm
Packing Dimension
155X77X210cm
Fast Moving Motor of The Worktable
1.5kw
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8459290000
Production Capacity
200sets/Month
Product Description
China factory supplier vertical radial drilling machine (Z3040X8/1)1.Main features: Inner-outer column.
Mechnical clamping for the column and Hydraulic Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.
2.Specification of our radial drilling machine Z3040x8/1:
| Model | Z3032×8/1,Z3040×8/1 | Z3040×10/1 |
| Max.Drilling capacity (mm) | 32 | 40 |
| Distance spindle axis to column generating line (mm) | 320-820 | 320-1020 |
| Diameter of column (mm) | 200 | 200 |
| Spindle taper | MT4 | MT4 |
| Spindle travel (mm) | 240 | 240 |
| Spindle speeds range (r/min) | 75-1220 | 75-1220 |
| Spindle speeds series | 6 | 6 |
| Range of Spindle feeds (r/min) | 0.1-0.25 | 0.1-0.25 |
| Mpindle Spindle feeds | 3 | 3 |
| Max.Distance spindle nose to working surface of base (mm) | 320-900 | 320-900 |
| Dimension of worktable (mm) | 400×400×350 | 400×400×350 |
| Dimension of base (mm) | 1370×700×160 | 1370×700×160 |
| Overall Size (mm) | 1407×720×1885 | 1407×720×1885 |
| Power of Main motor (kW) | 1.5 | 1.5 |
| G.W/N.W (kg) | 1425/1200 | 1425/1230 |
| Packing dimension (cm) | 155×77×210 | 187×77×210 |
3.Standard Accessories
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
4.Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
5.If you are intersted in radial arm drilling machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
