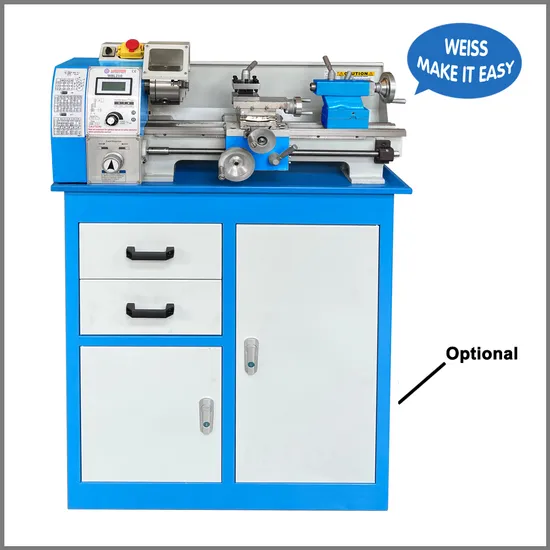

Weiss Wbl210 Wholesale High Quality Light Mini Lathe From China

Product Description

1.1HP Brushless Motor provide variable speed from 50 - 2500 rpm

2. Amazing size but packed full of features
3. Small enough to fit into the corner of the workshop, light enough to be truly portable.
4. This mini lathe is features variable-speed spindle with high/low speed ranges, convenient quick-lock tailstock, reverse feed for cutting left-hand threads and a great selection of included standard equipment.

5. WEISS Nanjing factory provides reliable quality, in time service and fast technical support.

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	WBL210
ITEM NO	10103210	100MM 3-JAW Chuck	Steady Rest
Distance between centers	Ø400mm	Chip Tray	Follow Rest
Swing over bed	Ø210mm	Splash Guard	Face Plate 175mm
Swing over cross slide	140mm	Toolbox and Tools	4-Jaw chuck 100mm
Width of bed	100mm		Backplate for 4-jaw chuck
Taper of spindle bore	MT3		Threading Diail
Spindle bore	21mm		2-Axis DRO (Magnetic Scales)
Number of spindle speeds	Variable		3-Axis DRO (Magnetic Scales)
Range of spindle speeds	100-2250mm		Stand
Range of inch threads (imperial version)	10-44 T.P.I		Luxury Stand
Range of metric threads (metric version)	0.3-3mm		Quick chage Tool Post (TOOA0)
Top slide travel	80mm		Turning Tools
Cross slide travel	100mm
Tailstock quill travel	60mm
Taper of tailstock quill	MT2
Motor (brushless)	750W

Details

Feed box can provide both right and left hand threading and quick switch feed direction
Imperial/ metric threading dial included
Guideway induction hardened and precision ground for long life

3-Jaw Self-centering chuck
All metal change gears with smooth and quiet running
Quick tailstock lock system features a drive hub to ensure consistent draw-down alignment every time
Delivery
Factory
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer good after sell service.
2. Can we pay by L/C or others ?
Yes ,you can make the payment by T/T, Paypal etc. 3. What is your payment term?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed. 6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.
