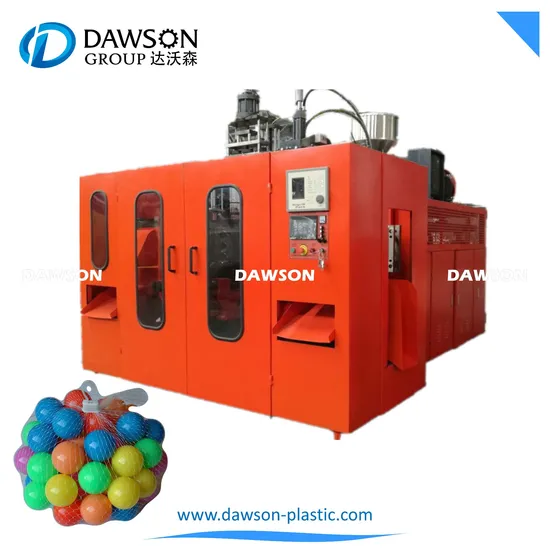

Sea Balls Toggle Type Continuous Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Automatic Extrusion Blow Molding Machine DSB80II

Blow Molding Machine for making 50~80mm plastic balls
Blow Molding Machine for making plastic sea ball
Machine Model DSB75
Suitable for making 0-5L milk bottles,plastic oil bottles, detergent bottles,shampoo bottles,medical bottles,plastic balls,tube, plastic cans,containers,jars,tools,toys,etc.
Double Station - 3 die head
Nine Cavities Mould
Mould with auto-deflashing system
Blow Molding Machine for making 50mm to 80mm Plastic Ball DSB80II
Technical Parameters Product: Plastic bottle / ball
Power supply: 380/220v 50/60 Hz Tri-phase
Layer: Single layer
Parison control: MOOG 100 points

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	4 L
	Output capacity	as per samples
	Size	4.4×3.4×3.6(M)
	Weight	11.3T
system	Specification	Parameters	Note
Plasticizion system
	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw 1	∮80mm,L/D ratio 25,130kg/h 38CrMoALA	Cooling system available
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	10KW/H
	Cooling Fan	Separate cooling system for heaters	Automatic cooling

Extrusion system
	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	200
	Extruder Motor	30kw SIEMENS MOTOR
Clamping system

	Summarize	High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
	Clamping force	270 KN
	Distance between platens	450~950mm
	Mould template	680× 660
	Mould material	S50C/Aluminium with beryllium copper

Electricystem
	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Parison control	MOOG 100 points controller
	Temperature control	Automatic temperature control module
	Movement control	TECH-2/Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
	TOTAL rated power	67kw
	Average power consumption	33 kw
	Inverter	Delta

Hydraulic system
	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	11kw motor (380V/220V,50/60HZ)
	Oil pump	double vane pump
	Valves	Imported oil pump valves and connections YUKEN
	Oil pipes	Double layer overpressure resistant
	System pressure	LP 100 bar / HP 130 bar Threads of hydraulic block use of screw joint GE(ISO 1179)
	Cooling system	Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.6~0.8Mpa
	Air displacement	2.2 M3/min
	Electromagnetic valve	Taiwan AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	100L/min
	Water pressure	0.4-0.6MPa

1.Hydraulic system and valves connections from Japanese Yuken industry.
2.Computer control system (PLC) Japanese Mitisubishi PLC Used to control all electrial components and touch screen
3.Auto-deflashing Unit
Remove extra parts of products automatically
Saving your labor cost
4.Electric Cabinet All electric components
From famous world brand to ensure the quality and stability
5. Touch screen
Chinese and English
(or other language)
All movement operated
By touch screen
Make the process full-automatic
Machine's color can be customized according to your needs.

Type of Blow Molding Machine

Extrusion blow molding In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected. EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows: 1. Continuous Extrusion Equipment Rotary wheel blow molding systems Shuttle machinery 2. Intermittent Extrusion Machinery Reciprocating screw machinery Accumulator head machinery Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums. Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers. Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking. Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.

Plastic machines we provide ....

Extrusion Blow Molding Machine Injection Blow Molding Machine PET Blow Molding Machine Injeciton Molding Machine Injection Stretch Blow Molding Machine

Applictions ....

Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets. Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields. House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life. Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere. Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications. Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels. Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
