Wuhan Ep Hipot 36kv Power Transformer Lighting Impulse Voltage Test System 400kv 30kj

Product Description

Wuhan EP Hipot 36kV Power Transformer Lighting Impulse Voltage Test System 400kV 30kJ Product Description Applications:
This lightning impulse test system is used for carrying out standard lightning impulse voltage full wave and chopping wave test on 36kV and below power transformer, HV apparatus such as high voltage switchgear, power capacitors, clearance, bushings, and CT/PT.

Product Parameters The number of standard lightning impulse voltage waveforms: 3 (standard lightning full wave, lightning chopping wave and flaw detection current wave).
Standard lightning impulse voltage full wave 1.2±30%/50±20%μs, efficiency is more than 85%. Standard lightning impulse chopping voltage waveform, efficiency: not less than 85%,, the chop off device can produce lightning chop-off waves with a chop-off time of 2 to 6 μs. The full-wave waveform of the defect current for the lightning impulse voltage test of the transformer reactor.
The full system is consisted by following:

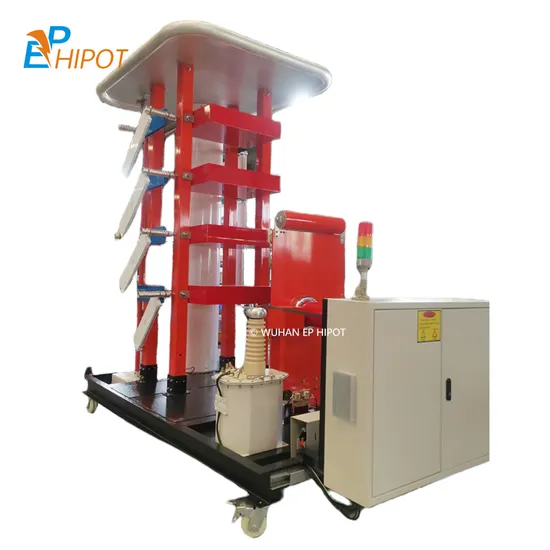

-400kV/30kJ lightning impulse voltage generator body 1 Set
-400kV/500pF low damping load type lightning impulse capacitor divider 1.0% 1 Set
-Impulse voltage test computer automatic control system 1 Set
-Automatic digital impact measurement and analysis system 1 Set
-Modulating resistor and accessories, discharge ground rod 1 Set
-400kV double ball intercepting gap device 1 Set
-100kV/20mA automatic rectification charging power supply device 1 Set
-Indication current shunt 5kA, 1.0% 1 Set
Main Parameters for System Nominal impulse voltage: ±400kV Rated energy: 30kJ Stage capacitance: 1.5µF, ±100kV Dry type fully insulation. Stage voltage: ±100kV Numbers of stage: 4 (each stage 7.5kJ) Output standard waveform: 1.2μs/50 μs standard lightning impulse voltage full wave
2-6 μs standard lightning impulse voltage chopping wave
Special standard indication current wave for transformer Synchronous range: > 20% Continuous time: Less than 80% of rated voltage, continuous working More than 80% of rated voltage, discontinuous working Synchronous error: <1% Movable with castors. Base: 2.5m × 1.3m, casters, movable. Height: about 2.0 meters. Weight: about 800kg
Please contact Wuhan EP Hipot Electric for more details. Certifications
