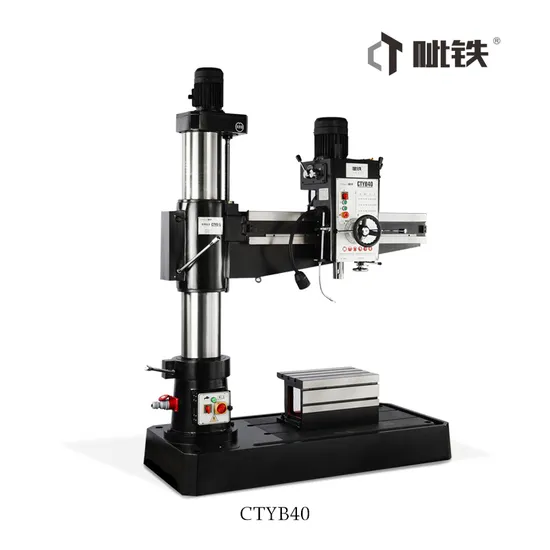

Industrial Radial Arm Drilling Machine with Low Price Ctyb40
Basic Info.
Model NO.
CTYB40
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Produce Capacity
1000
Feature
High Precision
MOQ
1PC
HS
8459290000
Transport Package
Standard Wooden Packing
Specification
1760*810*2370mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
200
Product Description
| Max.Drilling capacity | Casting:40mm Steel parts:32mm |
| Spindle taper | MT4 |
| Spindle travel | 200mm |
| Spindle feed range/Grade | 0.10-0.25rpm/3 |
| Rocker arm rotation angle | ±180 |
| Distance from spindle to column guide rail | 360-1300mm |
| Distance from spindle end to table surface | 260-1050mm |
| Spindle speed range | 32-1220rpm/12 |
| Main motor power | 2.2/1.5kw |
| Lift motor Power | 1.1kw |
| Net weight | 1300kg |
| Overall dimensions | 1760x810x2370mm |
| Package Size | 2570x1910x960mm |
