Suzhou Hot Sale Ushine Pure Water Blowing Filling Capping Combiblock Machine

Product Description

Product DescriptionHigh-speed rotary filling PET bottles blow-filling-capping Combi-block is based on "high-speed blow molding machine unit high-speed filling machine unit "and " high speed capping machine unit ", equipped with control system and on-line detection system. Through the optical, mechanical, electricity, gas, liquid and other disciplines comprehensive application with image recognition technology , the application of synchronous servo control system , allowing customers to achieve the integration of multiple unit control and production equipment , achieve the production line scientific layout , seamless and integrated control , improve the entire line of production efficiency, reduce investment costs, reduce energy consumption and maintenance costs of the integrated production capabilities.
Product Parameters

Containers and specifications
Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line							PH≥4.6drinking water
material	shape	Filling volume(ml)		Filling level(mm)			Neck type
PET Bottle	Square or Round Bottle	100-2000ml		Distance from bottle neck According request			As request
Adjustable specifications of the bottle type	Middle Mould Base: Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label & Control Mode			Packaging system			Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic			Packing system		Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
			Manual Film shrinker Wrap Around packer Robert Packing Machine		1*2 2*3 3*4 4*6 3*5
User Ambient Conditions:			Temperature:10~40ºC;Humidity:No dew
User Electrical Supply Specification			Voltage:380V±5%, 3phase; Frequency:50HZ±1%

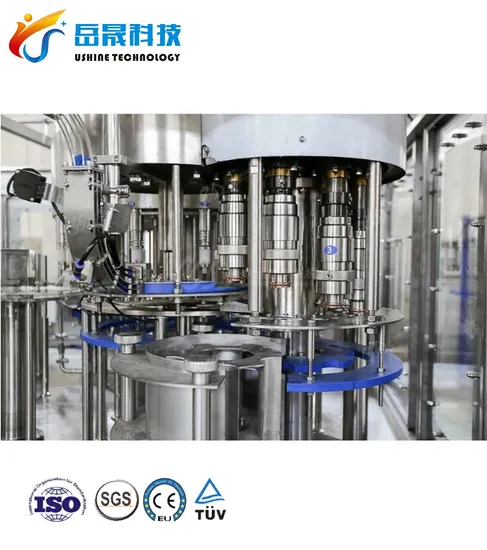

Detailed PhotosBlowing partBase taking, base feeding, bottle taking and bottle arranging fully are automatically completed with manipulator for avoiding middle pollution.The design of the recycling unit prevents the preform from getting bound up in the unscrambler.Water cooling plate: cooling bottle neck is to avoid neck deformation during heating.Filling part304/316 Stainless steel high precision filling nozzleFilling volume adjustable in fine rank, same liquid level after fillingAll 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean304/316 stainless steel filling pumpCapping partPlace and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during cappingAll 304/316 stainless steel constructionNo bottle no cappingAutomatic stop when lack of bottleTechnical parameters:

Rated Capacity	12000-36000BPH (500ml)
Filling Method	Gravity Filling
Applicable Bottle	PET Bottle, Diameter 50-92mm, Height 150-320mm
Applicable Cap	Normal Standard Cap

We provide the Complete turnkey project for beverage production line includes:Water Treatment System (Water Filtration)Preparation/Processing System (Mixing System for Drinks like CSD, juice etc)Injection molding machines (for pet preform)Bottle Blowing Machine (Making plastic bottles)Air Conveyor (Transport empty bottles)Filling Machine (Filling product into bottles) Cap elevator (Transport cap)Blow dryer (Blow away water drops)Flat Convey (Transport bottle)Code Printer (Printing the date on the filled bottle) Labeling Machine (Labeling for filled bottle)Bottle Packing Machine (package the filled bottles) Palletizing Machine (to palletize the cartons)After Sales ServiceTo help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.
Company ProfileSuzhou Yuesheng material technology CO., Ltd. is a professional and dynamic company of beverage filling machine. Our company is located in Suzhou City , Jiangsu Prov. China . It is 100kilomiters far away from Shanghai . Adhering to the spirit of "technology as pilot, face the world,excellent quality, first class ever" and the purpose of "scientific management, exploitation and innovation, sincere and pragmatic, service-oriented", the company forms the talent team in reasonable structure and adopts advanced technology to develop and supply the good products and service.
FAQQ1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
