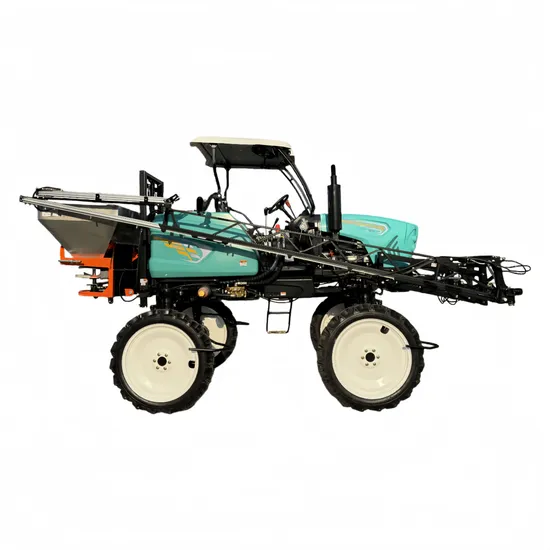

1000L Agricultural/Agriculture Farm Tractor Fogging Pesticide Pump Boom Spraying/Spray /Sprayer Machine for Corn/Rice/Cotton/Wheat/Soybean/Sugarcane
| Negotiable | 2 Pieces (MOQ) |
Basic Info.
Model NO.
3WPZ-1000
After-sales Service
One Year
Warranty
One Year
Installation
Internal Threaded Connection
Liquid Contained
Medicine
Spraying Shape
Full Cone
Volume
1000L
Power Supply
Diesel
Type
Self-Propelled
Cab
Adjustable
Spray Rod Type
Hydraulic Lift
Working Pressure
0.2-0.5 MPa
Medicine Pump Construction
3-Cylinder Plunger Pump
Gear Box
Uniquely Designed 8-Speed
Engine Type
Four-Cylinder Water Cooled Generator
Turning Radius
3050mm
Topdressing Efficeny
3-4 HEC/H
Transport Package
Loose Package
Trademark
YUHE
Origin
Linyi City
HS Code
84244100
Production Capacity
2000 PCS/Year
Product Description
Product Description:The company has cultivated plant protection machinery for more than 10 years, has a professional technical team, and has developed and produced a number of products through the national 3C certification, and obtained a number of technical patents.
Suitable for wheat. rice, corn, cotton, rapeseed, tea tree, planting seedlings and vegetables, sugar cane and other crops during different growth period for insecticides, fungicides, herbicides and defoliants ripening, can-sugar promoter, foliar fertilizers
| Project name | Specification parameters | Item name | Specification parameters | ||
| Overall size | Overall dimensions (mm) | 5250*1960*3080 | Powertrain | Engine power (kw/r/min) | 36.8/2400 |
| Ground clearance (mm) | 1060 | Battery capacity | 24V, 2*45Ah, | ||
| Spray length (mm) | 12000/15000 | Engine type: | Four-cylinder water-cooled inline | ||
| Spray rod lift (mm) | 320/1720 | Walking system | Weight of the whole machine (Kg) | 2250 | |
| Wheel base (mm) | 1500/1800 | Drive | Four-wheel drive | ||
| Wheelbase (mm) | 2200 | Steering | Four-wheel | ||
| Cab | Adjustable | Gearbox | Uniquely designed 8-speed gearbox very smooth. | ||
| Spray system | Spray rod position | Front | Brakes | Drum Brake | |
| Spray rod material | Aluminium | Tires | Pneumatic rubber | ||
| Number of spray bodies (each) | 24/32 | Tire diameter (mm) | 1080 | ||
| Spray rod type | Hydraulic lift | Tire width (mm) | 120 | ||
| Medicine cabinet Volume (L) | 800/1000 | Turning radius (mm) | 3050 | ||
| Working pressure (Mpa) | 0.2-0.5 | Drive mode | mechanical drive | ||
| Drug pump flow (L/min) | 36-81 | Walking speed (km/h) | Low :2.53/8.8/13.2/3.3; High:4.95/17.6/26.4/6.6 | ||
| Medicated liquid stirring | Jet +Reflux | Work benefit | Application efficiency | Arid land 2-3hec/h | |
| Medicine pump construction | 3-cylinder plunger pump | Topdressing efficiency | 3-4 hec/h | ||
| Medicine pump drive | Belt drive | Fuel consumption | 4 L/h | ||
WORKSHOP:
Exhibition :
FAQ:
Q: how can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment
Q: what can you buy from us?
A: We have the most complete range of agricultural machinery spraying accessories in the industry, as well as various types of spraying machines
Q: What's your delivery time?
A: Normally about 15-30days after got your deposit.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF;
