Basic Info.
Model NO.
PG-60T/80T/120T/150T
Customized
Non-Customized
Automatic Grade
Semiautomatic
Application
Deburring Dumpers,Grommets, Gaskets, O Rings
Usage
Remove Rubber and Plastic Excess Flashes
Transport Package
Wood Carton for Long Distance Sea Transportation
Specification
5KW/6KW/7KW/8KW
Production Capacity
40set Per Year
Product Description
China's Premier Producer of Automatic Rubber and Plastic Burr Cleaning Machines. As a leading force in the industry, we pride ourselves on delivering cutting-edge solutions that redefine the standards of burr removal and surface refinement.

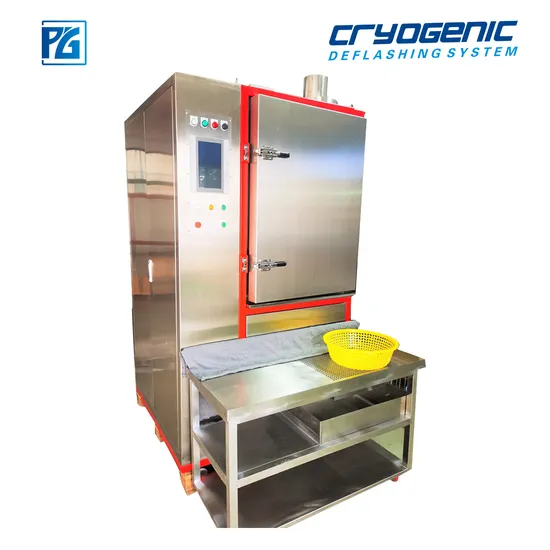

Product Description Witness the incredible metamorphosis as rubber and plastic components transcend their flexible origins. As temperatures plummet, these materials harden, becoming more brittle and beginning to crystallize. This chilling metamorphosis is crucial: the flash of molded items—being more delicate—reaches its brittle threshold earlier than the product itself. Enter the revolutionary PEGE Cryogenic Deflashing Machine! This marvel harnesses the power of low temperatures to selectively embrittle flashes while preserving the core product's flexibility. With precision-targeted high-speed plastic media, it eradicates fragile flash, ensuring impeccable surface perfection without compromising the integrity of your valued products.
FUNCTIONS
Explore unparalleled precision and efficiency with our cutting-edge machine, engineered to remove flashes from small rubber and plastic components like O-rings, gaskets, and intricately molded parts. Experience a new standard in component detailing.
Leveraging the transformative capabilities of cryogenic technology, our machine first freezes flashes, then applies high-speed polycarbonate media to seamlessly enhance the surface of molded rubber and plastic parts. Elevate your components to unrivaled quality and excellence.
SPECIFICATIONS
TECHNICAL INFORMATION |
MODE | PG-60T | PG-80T | PG-100T/120T | PG-150T |
MACHINE PHOTO | | | | |
SIZE(L*W*H) | 1000*1000*1950MM | 1100*1200*2000MM | 1200*1250*2200MM | 1300*1350*2250MM |
WEIGHT | 700KG | 850KG | 1000KG | 1500KG |
POWER | Ac380v 50Hz | Ac380v 50Hz | Ac380v 50Hz | Ac380v 50Hz |
ELECTRICTY | 6Kw*3Ph | 7Kw*3Ph | 8Kw*3Ph | 9Kw*3Ph |
TEMPERATURE | -130 - +50ºC | -130 - +50ºC | -130 - +50ºC | -130 - +50ºC |
PRESSURE | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa |
BARRAEL CAPACITY | 60L | 80L | 100L or 120L | 150L |
EFFECTIVE CAPACITY | 20L | 30L` | 40L` | 50L` |
WHEEL SPEED | 3000rpm - 7200rpm | 3000rpm - 7000rpm | 3000rpm - 7000rpm | 3000rpm - 7000rpm |
COOLING MEDIA | Liquid Nitrogen | Liquid Nitrogen | Liquid Nitrogen | Liquid Nitrogen |
OPETATION MODE | Touch Screen | Touch Screen | Touch Screen | Touch Screen |
FRAME | SUS304 WITH SOME RED PAINT ON CERTAIN AREA |
WHEEL DIAMETER | AL φ250mm | AL φ300mm | AL φ350mm | AL φ350mm |
BLASTING SPEED | 105.7m/s | 123.3m/s | 143.3m/s | 143.3m/s |
MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. O-rings and various irregular rubber parts: Adaptable to different materials and sizes, providing versatile solutions.
B. Micro electronic components: Ensure precision and uphold quality standards with our specialized processing capabilities.
C. Precision-crafted elastomeric parts: Perfectly suited for high-stakes applications where precision is paramount.
D. Precision-molded plastic components: Uphold exacting standards, achieving exemplary results.
E. R & D prototype runs: Where the forefront of innovation seamlessly integrates with reliability.
F. Die-cast products like zinc, aluminum, and magnesium alloys: Exemplifying durability and finesse in every detail.
FEATURES
Unmatched Efficiency: This machine revolutionizes flash removal, replacing the labor of approximately 60-80 workers. Supercharge your productivity with cutting-edge technology.
Unrivaled Precision: Capable of eliminating the tiniest, most stubborn flashes that manual labor cannot, our machine significantly enhances product precision and quality.
Cost-Effective Solution: Offering a financially savvy alternative to manual labor, it reduces costs while amplifying operational efficiency and performance.
