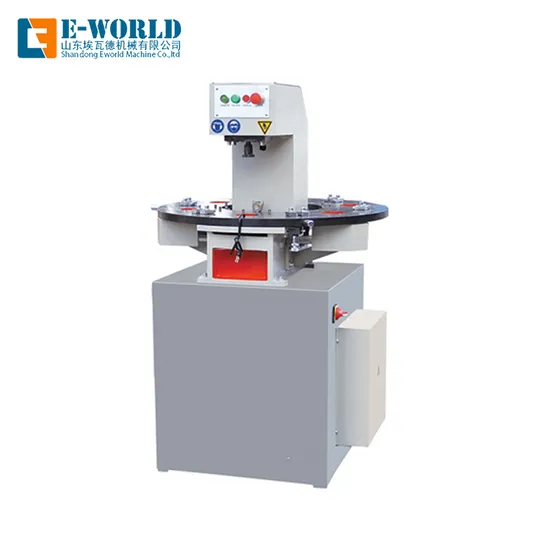

Aluminum Window Punching Machine for Aluminum Window Profile

Product Description

Aluminium Punching Machine
Product Description

1. Machine features
1). The machine is used to punch and cut various profile holes for aluminum door and window profiles and profile end surface.
2). Open-type construction enables flexible operation positions.
3). Rotating work bench enables convenient switchover among six sets of molds.
4). it is convenient to design and install single-position mold and can also realize multi-position punching and cutting.
5). the hydraulic power is stable and the nominal pressure is big and so it can adopt to complex punching and cutting procedure.
6).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.



Product Parameters

Model number	LY-6-50
Power supply	380V 50Hz
Motor power	2.2kw
Motor rotational speed	1420 r/min
Rated oil pump pressure	16Mpa
Oil tank volume	20L
Press nominal pressure	50KN
Punching travel	30mm
Travel times	30times/min
Closing height:	185mm
Contour dimension	900×900×1413mm
Machine weight (about)	380kg

1.Question:Are you manufacture? Answer: Yes,we are professional manufacture which have more than 5 workshops. 2.Question: How about the service ? Answer: (1) Reply it within 12 hours if it from Ali-trademanager or email . (2) Deliver max within 15 days. (3) 24 hours for after -sale service.
(4) More than 12 years experience in this kind machine field.
(5) Fluent English ,communication barrier free.
3.Question:What's the guarantee ?
Answer:
(1) Our guarantee is 12 months.
(2) 24 hour's technical support by email or calling.
(3) English manual and video tutorial.
(4) 2 years quality guaranty for the machine (excluding the consumables).
(5) We will provide the consumable parts at an agency price.
(6) 24 hours on line service each day, free technical support.
4. Question: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5.Question:if our price is higher than another company or factories ?
Answer: Please check the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
6.Question:How long is the delivery time ?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7.Question: What is the payment ?
Answer: Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
