PLD2016N FINCM Cnc Heavy Vertical Plates Drilling Machine

Product Description

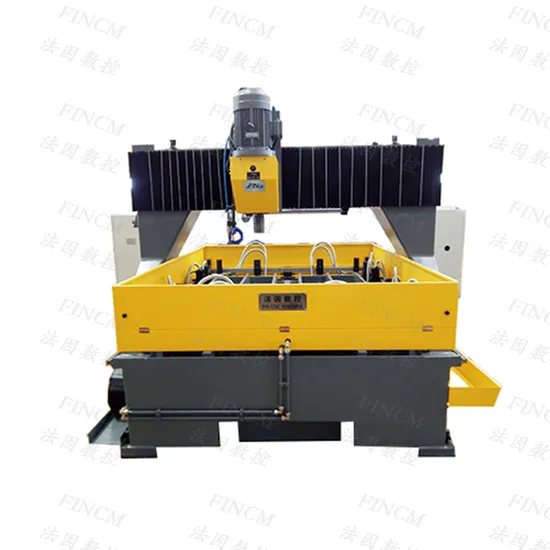

PLD2016N FINCM Steel Structure Fabrication CNC Plate Drilling Machine
Product Description

Product Parameters

Item	Name	Value
Size of workpiece	Thickness of workpiece (mm)	Max 100
	Width×Length (mm)	2000mm×1600mm (One piece)
		1600mm×1000mm (Two pieces)
		1000mm×800mm (Four pieces)
Drilling spindle	Spindle change methd
	Diameter of drilling head	Twist drill ≤Φ50mm
	The mode of speed adjustment	Transducer stepless speed adjustment
	Rotate speed	20-560r/min
	Stroke	180mm
Hydraulic clamping	Thickness of clamping	15-100mm
	Quantity of clamping cylinder(piece)	12 piece
	Clamping force	7.5KN
	Start-up clamping	Foot-switch
Cooling fluid	Mode	Forcing cycle
Hydraulic system	System pressure	6MPa(60kgf/cm2)
	Volume of oil tank	100L
Air pressure	Source of compressed air	0.4MPa(4kgf/cm2)
Motor	Spindle	15kW
	Hydraulic pump	2.2kW
	Chip removal motor	0.75kW
	Cooling pump	0.25kW
	Servo system of X axis	1.5kW
	Servo system of Y axis	1.0kW
Overall dimensions	L×Wx×H(mm)	About 5180×2450×2400mm
Weight(KG)	Main machine	About 4500kg
	Scrap Removal Device	About 800kg
CNC Axis	X,Y(point controling) Z(hydraulic feeding)
Travel	X Axis	2000mm
	Y Axis	1600mm
Maximum Positioning speed	10m/min

Key Outsourced Components List

NO.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China
