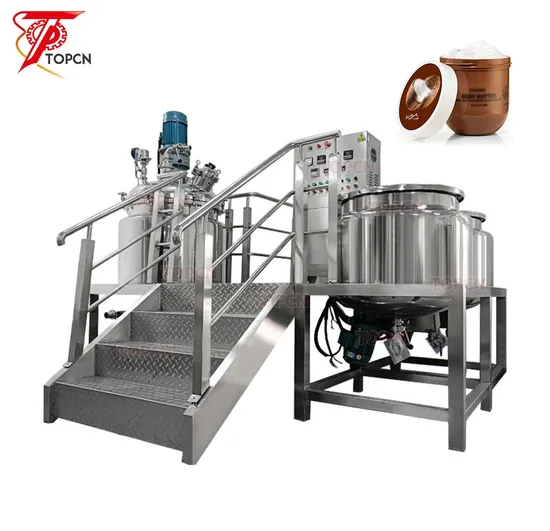

Fixed Heating Homogenizing Emulsifying Vacuum Emulsifying Machine Customized High Shear Cosmetic Cream Mixing Emulsifying Pot

Product Description

Specification	Working Volume(L)	Heating Method(optional)	Dimension(L*W*H)(m)	Weight(kg)
TPEM-50	50	Electric heating or steam heating	2.6*2.4*2	650
TPEM-100	100		2.8*2.5*2.2	850
TPEM -200	200		3*2.8*2.3	1100
TPEM -500	500		3.3*3*2.5	1500
GYE-1000	1000		4.2*3.5*3.8	2500

1,The triple mixing adopts the imported frequency inverter for speed adjustment,which can meet different technological demands.2,The homogenizing structure is made through German techology. The machine adopts the improted double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 3500rpm and the high shearing fineness can reach 0.2-5um.3,The vacuum defoaming can make the materials meet the requirement of being aseptic . The vacuum materials vacuum sucking can avoid dust.4,The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting discharge.5,The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish whcih meet the GMP standard.6,According to process requirement, the tank body can heating and cooling the electric heating.7,To ensure the stability of whole machine, the machine adopt the imported electric appliances which can meet the international standards.
SUS316L wall scrapper mixer, PTFE scraper, fixed propeller 45 degree blades on opposite angel to make sure mixture complete, 0-65rpm with variable speed controlMaterial contact parts all use SUS316L stainless steel, The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standardsWater-cooled bottom homogenizerWhen the frequency conversion speed is 0-3500rpm, the material will form a strong circulating water flow and no dead ends, the product can be fully mixed, emulsified, dispersed and homogenized to form a good uniform mlecular structureWater tank and oil tank with Scatter disk using sus316 stainless steel, speed reach 1440RPM
Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,
.Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider. 2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine. 3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke, how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke, how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke, how to solve the problem?A11: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
