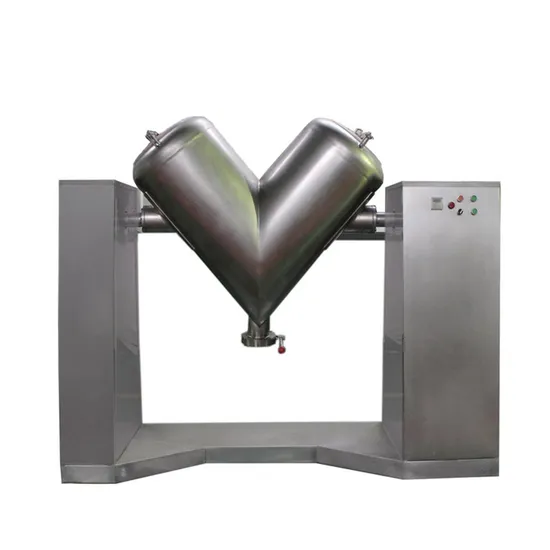

Laboratory Hopper Mixing Machine V Type Mixing Machine
| US$4,000.00-20,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
VH-Series
Application
Granules, Powder
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical
Certification
CE, ISO, CE, GMP, ISO
Condition
New, New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
10-50L
Safety Features
Emergency Stop Button, Overload Protection
Speed Control
Single Speed
Speed Range
< 30 R/min
Stirring Type
Diving
Temperature Control
With Heating
Working
Shear Mixer
Precision
High Precision
Voltage
380V
Computerized
Computerized
Customized
Non-Customized
Type
Fixed Hopper Mixer
Finished Dosage Form
Other
Warranty
5 Year
Mixing Hopper Clamping Range(L)
0-50
Maximum Loading Coefficient
70%
Maximum Material Load(Kg)
25
Installation Power(Kw)
1.1
Mixing Speed(Rpn)
3-25
Transport Package
Wooden Case
Specification
CE, GMP
Trademark
LTPM
Origin
China
Production Capacity
25-100 Sets/Month
Product Description
Application:The mixer is used for mixing the dry material grains in the medical, chemical, food, metallurgical and other industries.
The mixing barrel structure is unique. The mixing efficiency is high. There is no corner that can not be reached. The barrel uses the stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer meets GMP standard.
Feature: |
1. It is used to mix the dry-powder, granular materials with good liquidity. 2. It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%. 3. It adopts vacuum feeding under sealing state. There's no driving structure inside and be clean, no dead corner in according with GMP standard. |
Spec\item | Total volume L | Working cpacity L | Working capacity kg | Rotating speed rpm | Power kw | Weight kg |
| VH-50 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| VH-150 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| VH-300 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| VH-500 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| VH-1000 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| VH-1500 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| VH-2000 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| VH-3000 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| VH-4000 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| VH-5000 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| VH-6000 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| VH-8000 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| VH-10000 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
Q: What price terms you offer? A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes,we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
