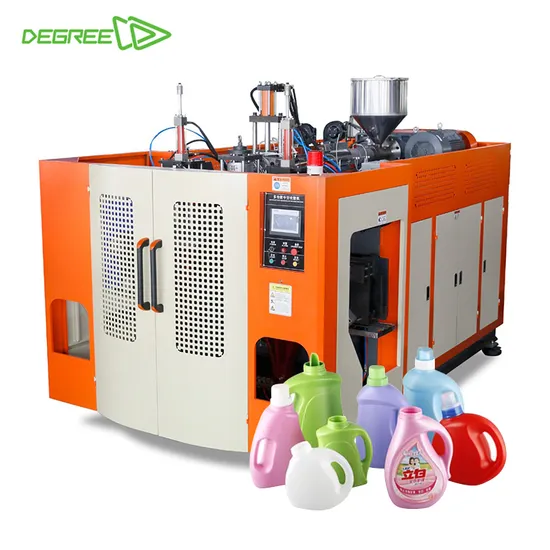

China Manufacturer High Quality Double Station Extrusion Blow Molding Machine for Plastic Toy Sea Ball

Product Description

Product Description

Machine Specification:
Degree can offer 2L-120L hdpe bottle blow molding machine
hdpe bottle blow molding machine adopt full closed loop control, the hydraulic system use pressure and running control system, variable plunger pump to make sure the machine work stable, reduce the energy consumption of the hydraulic system and save power.
We are the professional hdpe bottle blow molding machine manufacturer and supplier in China.
-The screw adopts high potency melt to make sure the material well mixed.
-Adopt frequency control of motor system to reduce the power consumption.
-Adopt horizontal movement frame to improve stability and speed.
-The oil cylinder is in the center of the mold board, uniform stress for quality products and increase life time.
-High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.
-The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.
-Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.
-The precise time control system assured good quality, suitable weight and reduces production cycle.
-Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.
-Multi-function bottom blowing type for shaped products.
-The mechanical arm can take out the product automatically.
Detailed Photos
Product Parameters

Model	DEG-2L-D
Max. Product Volume (L)	2
Dry Cycle (pcs/h)	800*2
Screw Diameter (mm)	60
Screw L/D Ratio (L/D)	24~26
Screw Motor Power (Kw)	15
Screw Heating Capacity (Kw)	3.3~4.5
Number of Heating Zone	3
Output of HDPE (Kg/h)	50~70
Oil Pump Motor Power (Kw)	7.5
Clamping Force (Kn)	38
Mold Open Stroke (mm)	138~368
Size of Mold (W*H)mm	300*320
Max. Die Mouth Diameter (mm)	90
Die Heating Capacity (Kw)	2.8~3.5
Blowing Pressure (Mpa)	0.6~0.8
Air Consumption (M3/Min)	0.4
Cooling water Pressure (Mpa)	0.3
Water Consumption (L/Min)	50
Weight of Machine (T)	4
Size of Machine (L*W*H) (m)	3*2*2.1

Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
