Automatic Sheet Cutting Machine Supplier

Automatic Sheet Cutting Machine Supplier

US$5,500.00-7,800.00 1 Set (MOQ)

Basic Info.

Model NO.
LT-600
Classification
Flat Knife Cutter
Driven Type
Electric
Type
Industrial Cutter
Blade Material
Steel
Computerized
Computerized
Cutting Speed
80-100cut/Min
Transport Package
Standard Plywood Package
Specification
960x1020x1150mm
Trademark
Longterm
Origin
Jiangsu, China
HS Code
84411000
Production Capacity
500 Sets/Year

Product Description

Automatic Sheet Cutting Machine supplier

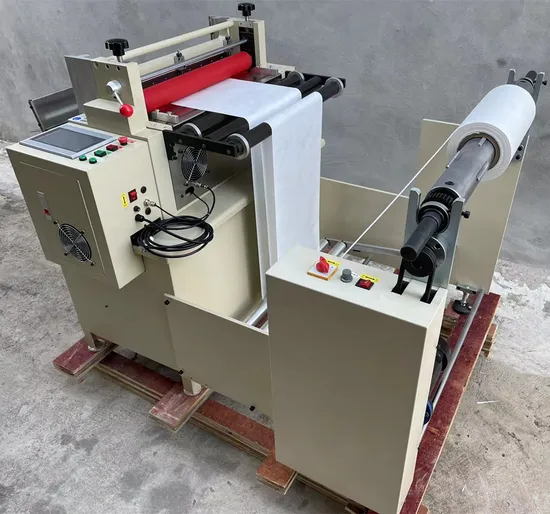

Machine photo

FUNCTIONAL CHARACTERSTICS
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting, equipped with automatic unwinding system and air shaft, which will be easy to load and unload. With photoelectric system to searching the marks , and with the electric static eliminator after cutting the sheets

Purpose
Sheet cutting for all kind paper, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form. To cut material from rolls to sheets.
Material can be cut as below

Main Technical Parameter
Item Number LT-360 LT-500 LT-600 LT-700 LT-1000
Web Width 0-360mm 0-500mm 0-600mm 0-700mm 0-1000mm
Cutting length 0-9999.99mm 0-9999.99mm 0-9999.99mm 0-9999.99mm 0-9999.99mm
Cutting speed 100 cut/min 100 cut/min 100 cut/min 100 cut/min 100 cut/min
Cutting precision 0.03mm 0.03mm 0.03mm 0.03mm 0.03mm
Voltage 220V/380V 220V/380V 220V/380V 220V/380V 220V/380V
Size 1100x1420x1280mm 1250x1420x1280mm 1350x1420x1280mm 1450x1420x1280mm 1730*1420x1280mm
Weight 320kg 380kg 400kg 420kg 450kg
Total Power 2.2kw 2.2kw 2.2kw 2.2kw 2.2kw

Features 1. The max width: 360, 500, 600, 700, 1000, customized
2. Tolerence: 0.05mm, Precision: 0.03mm
3. Material thickness: 0.5mm-20mm
4. Cutting speed: 100cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. A conbination of PLC and servo motor.
8. Eye mark device for optional
9. An air shaft as the loading shaft;
10. Two accessories, static eliminator and conveyor belt, for you to choose
11. Automatic unwinding function;
12. Cutting length is accurate;
13. Operation is easy;
14. Waste rate is low;
15. Diverse functions satisfy your various requirements;
16. We offer superior-quality products and best service for you;
17. As a high-tech manufacturer, we possess veteran engineers and professional sales team;
After-service
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
Electric Box
Package
