Shantui 0.04cbm Mini Excavator Se17sr Small Digger 1.8ton Crawler Excavator
Basic Info.
Model NO.
SE17SR
Type
Crawler Excavator
Usage
Special Excavator, Mining Excavator, GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.04 Cbm
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine Model
D902
Emission Standard
Eurov EPA Tier4
Rotating Speed
9.5r/Min
Bucket Digging Force
16kN
Bucket Rod Digging Force
9.5kN
Gradeability
58%
Ground Clearance
460mm
Transport Package
Suitable Package for Shipment
Specification
3575*1300*2405mm
Trademark
SHANTUI
Origin
China
HS Code
8429510000
Packaging & Delivery
Package Size
360.00cm * 130.00cm * 240.00cm
Package Gross Weight
1800.000kg
Product Description
Product Description

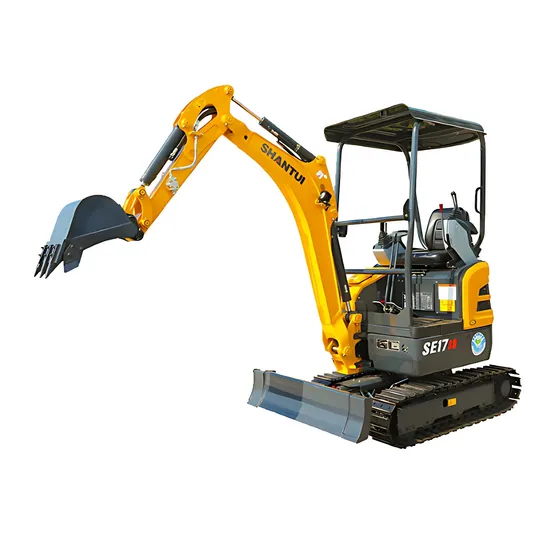

Shantui SE17SR 1.8 Ton Hydraulic Mini Crawler Excavator
Advantages:
Configuration selling point
An industry top-tier brand engine delivers robust power. The machine is equipped with a load-sensitive control hydraulic system that operates at high system pressure, ensuring exceptional efficiency, as well as smooth and synchronized actions.
Ease of maintenance and operation comfort
The machine is equipped with the mechanical suspension seat, the high-power hot air system. The machine is equipped with Bluetooth radio. The all-hydraulic pilot control features excellent maneuverability and allows for easy maintenance.
Adaptability to diverse working conditions
The machine features a zero-tail swing design, chassis with variable width, and a boom side swing structure, making it appropriate for operations in narrow spaces. The machine is equipped with several sets of optional attachment pipelines to meet the requirements of diverse working conditions.
Product Parameters
Main Specification | Operating Weight | 1800kg |
| Type | Backhoe bucket | |
| Bucket Capacity | 0.04cbm | |
| Bucket Digging force | 16KN | |
| Arm Digging force | 9.5KN | |
| Ground Press | 29Kpa | |
| Swing speed | 9.5r/min | |
| Fuel Tank | 19L | |
| Cooling system | 5L | |
| Engine Oil | 3.7L | |
| Hydraulic Oil Tank | 20L | |
Overall Dimension | Transport Length | 3570mm |
| Height | 2400mm | |
| Transport Width | 990/1300 mm | |
| Crawler Width | 1587mm | |
| Thead | 1230mm | |
Scope of Work | Max.Digging Height | 3545mm |
| Max.Dumping Height | 2451mm | |
| Max.Digging Depth | 2295mm | |
| Max.Vertical Digging Depth | 1670mm | |
| Max.digging Distance | 3910mm | |
| Min.Swing Radius (front) | 1431mm | |
| Min.Swing Radius (Tailer ) | 650mm | |
Engine | Engine Model | D902 |
| Emission Standard | EUROV EPA Tier4 | |
| Type | 3 Cylinder Directly injection | |
| Displacement | 0.898L | |
| Rated Capacity | 11.8KW/2300Rpm | |
Hydraulc System | Type | Single plunger pump |
| Rated Discharge flow | 28L/min | |
| Main Pump | Hengli | |
| Main Valve | Hengli | |
| Swing motor | Eaton | |
| Traveling Motor | Eddie | |
Traveling System | Support rollers quantities | 3*2 |
| Traveling speed | 0-2.2~4.3km/h | |
| Drawbar pulling force | 18KN | |
| Grade ability | 58% | |
| Ground clearance | 360mm |
